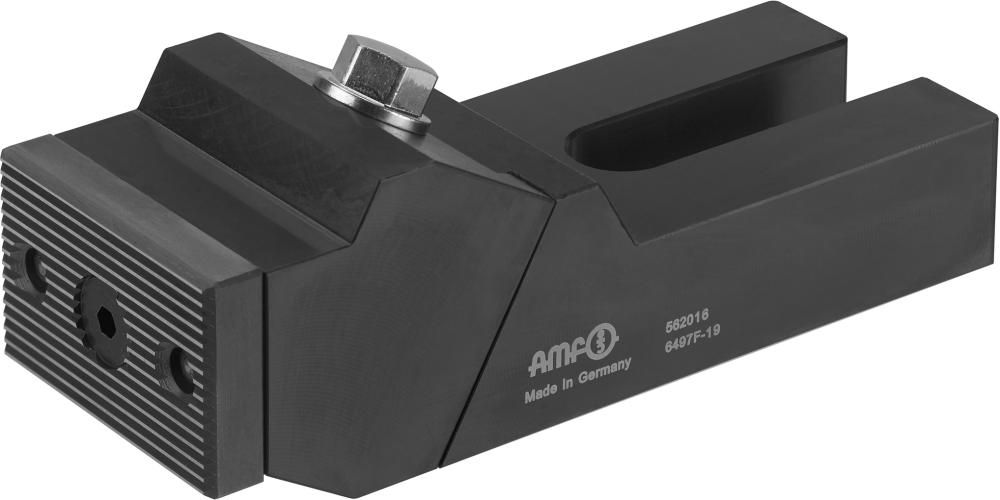

Stable clamping jaw, flat Design: With exact prismatic guide, base body made of quenched and tempered steel, clamping jaws made of case-hardened steel. The jaws can be turned around, with a smooth side for machined workpieces and a fluted side for raw workpieces. Application: These stable jaws are suitable for lateral clamping thanks to the large clamping surface. We recommend using two tensioning screws when mounting the stable clamping jaw to the machine table. Note: All mounting screws (2 per clamping jaw) should be ordered separately based on the slot width of the screws for T-slots DIN 787.

Specifications

Schlitzbreite b1	38
b2	90
C	10
E	12
H min.	75
H max.	91,5
h1	46
Höhe H2	40
L1	256
L2	152
L4	34
SW	21
Haltekraft F1	50
Füllhöhe H2	7,5
