WP_120-110-115-120-000

WP_120-110-115-120-000

List price incl. VAT / pce
178.58
exkl. MWST 150.07 €
Your price incl. VAT / pce und inkl. Rabatt
178.58
exkl. MWST 150.07 €
Alle Ausführungen

Please log in to be able to use the shopping cart and then complete orders.

Log in
Item no 1005493.0350
EAN code 7290019698333
Katalognummer 2613 0350, 26130350

Description

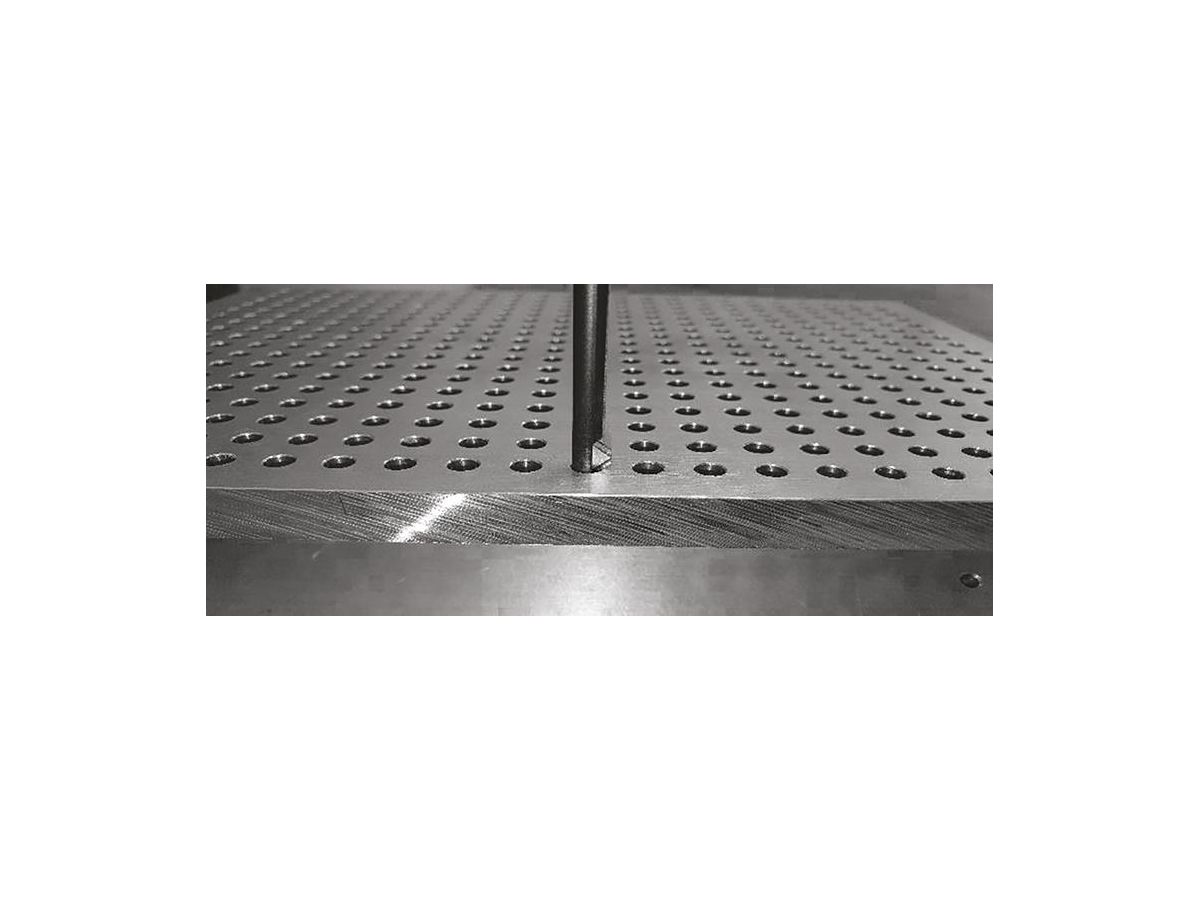

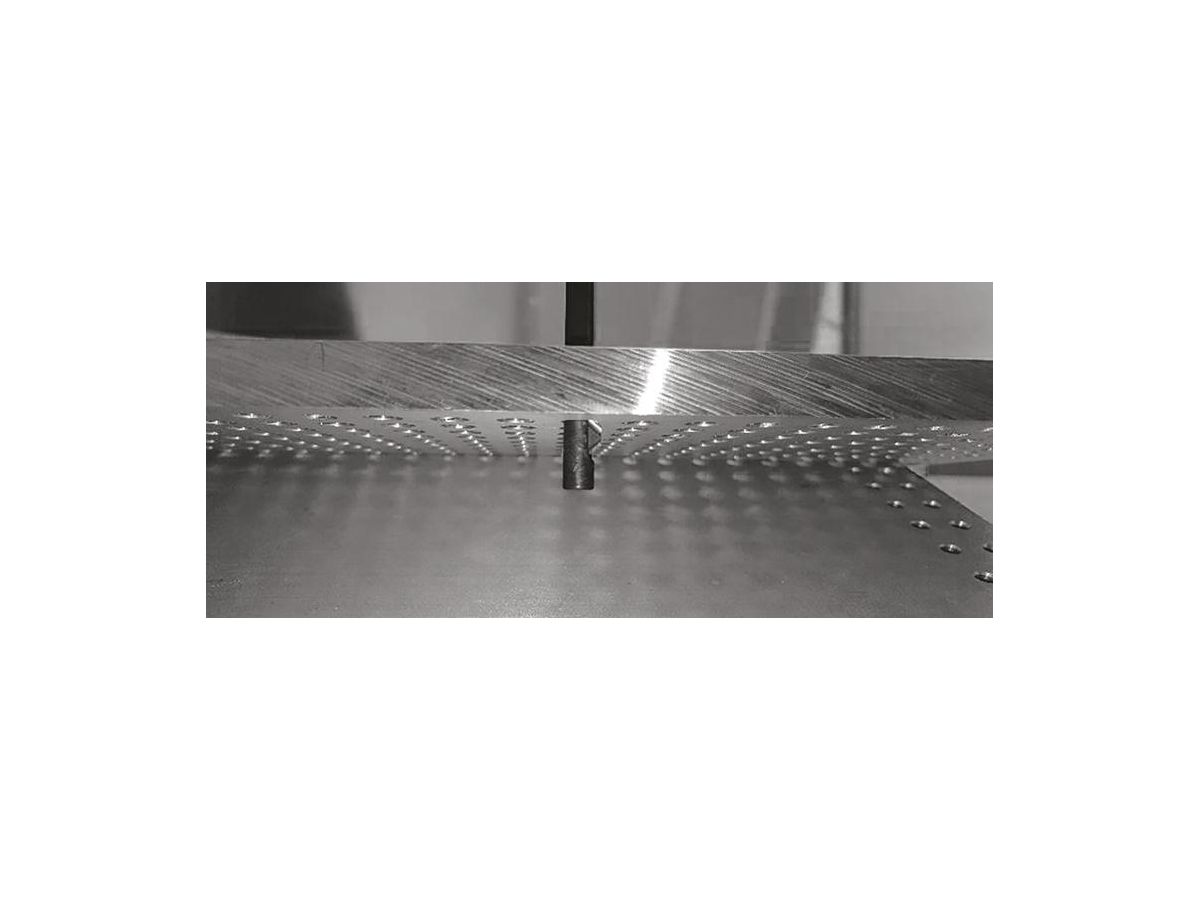

Machine bore deburring tool Design: The machine deburring tool is equipped with interchangeable blades that are available in two different sizes. These blades are suitable for bore diameters from 3 mm to 4.5 mm and for 5 mm to 20 mm. A special feature of this tool is the integrated spring mechanism, which enables the blade to be changed quickly and easily. This ensures a high degree of flexibility and efficiency when machining different bore sizes. Application: The machine deburring tool is specially designed to deburr through-holes both forwards and backwards in a single operation. This results in a fast, effective and economical process that ensures even and clean bore edges. Thanks to the spring-loaded blade, the tool can machine different bore diameters, which increases the versatility and applicability of the tool. It can be used for through-holes from 3 mm to 20 mm, which covers a wide range of applications. Note: The blade is included with the purchase of this product. You do not need to purchase an additional blade separately, as it is already included in the package. This ensures that you can start using it immediately after unpacking Scope of delivery: Deburring tool including blade. Manufacturer: Noga Tools BV, Segment 20, 6921 RH Duiven, NL, +31 26 319 46 36, info@nogatools.nl

Specifications

Stähle bis 1000 N/mm² 25–45
L2 29 mm
L1 4 mm
L3 10 mm
DS 8 mm
Winkel 17 °
Guss 20–35
I 85 mm
D 3,5 mm
