Description

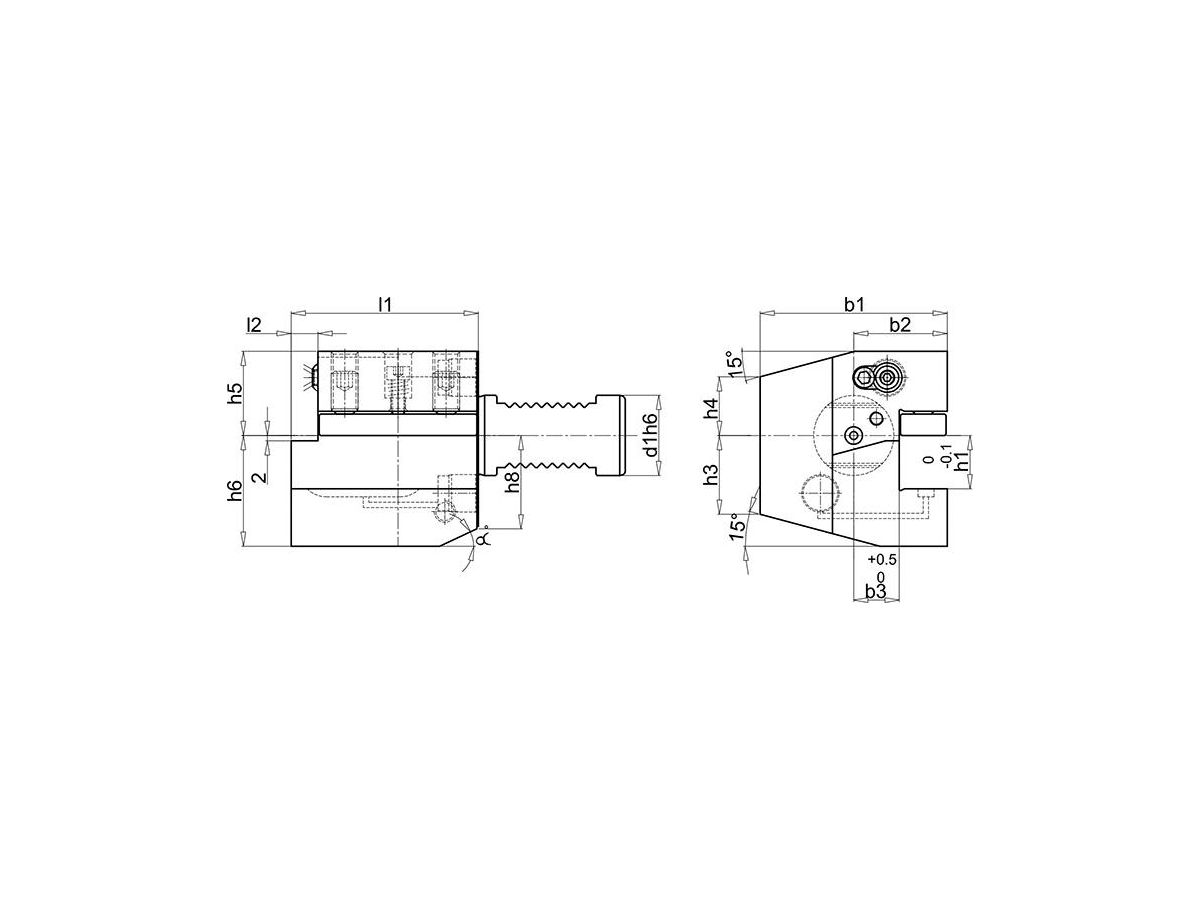

Form C1A right, short / form C4A OVERHEAD left, short, with internal coolant supply Design: Axial tool holder right. With double serration. Shank and contact surface hardened and ground, coolant transfer bore type AQUA-G® for tools with internal cooling, single-toothed, connection for external cooling G1/8", coolant-tight up to 80 bar. Application: For tool holder with internal cooling. Reduction of h1 to the next smaller indexable insert holder is possible using a shim. Manufacturer: Wilke Zerspanungstechnik GmbH, Eschborner Str. 4, 65824 Schwalbach / Ts., DE, +49619650360, info@wilke-tools.de

Specifications

Form	C1C4A
VDI	40
Spannbereich	25 mm
DIN	DIN69880
L2	85

Replacement article

VDI-HALTER 69880 C1C4A-40X25X85
DOPPELVERZAHNUNG AQUA-G

Item No: 2002415.0040
