Description

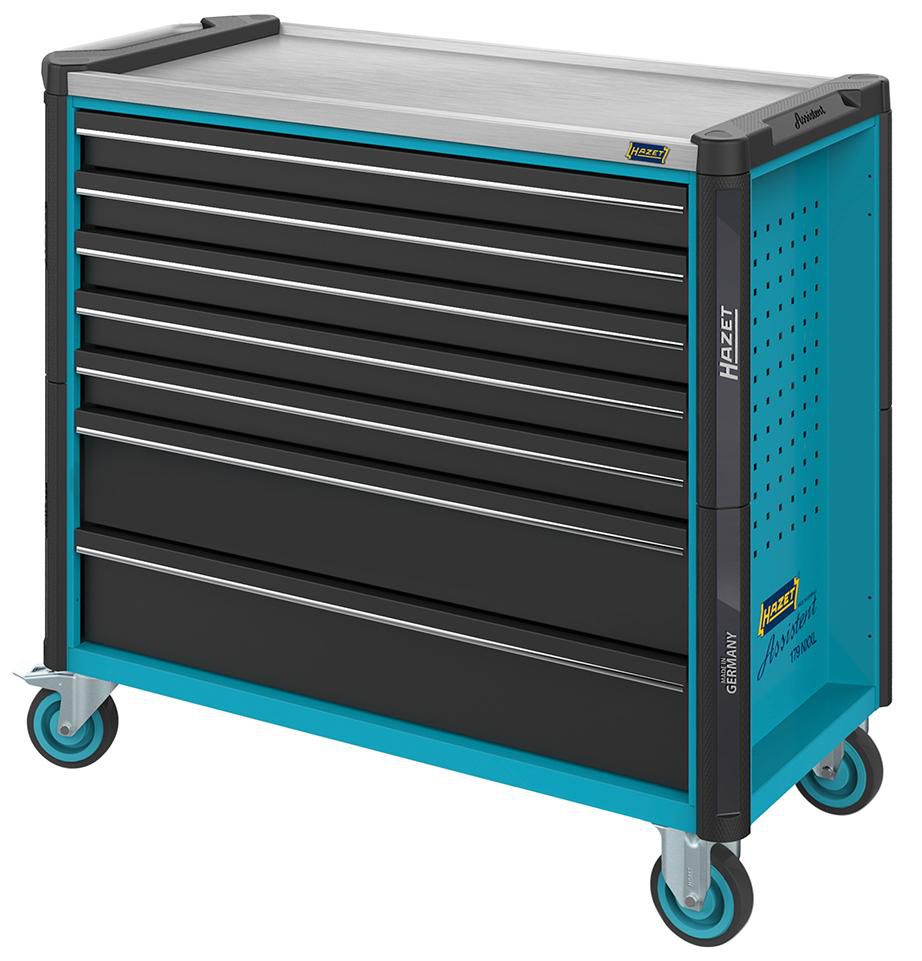

Workshop cabinet Type 179NXXL-7 with 340-piece product range Design: Sturdy sheet steel construction, drawers with ball-bearing mounted guide rails, full extension, middle and end catches as well as single lock against accidental opening while moving, with automatic retraction. The basic equipment includes a divider in each drawer. The side walls have square perforations, the attachments are protected from damage by indented side walls mounted inside the trolley dimensions. Centrally closed by a cylinder lock. Worktop made of solvent-resistant stainless steel. With large, heavy duty non-marking fixed castors (Ø 125 mm), 2 swivel castors (Ø 125 mm), with roll-spinning brake (total stop) for firm footing in all directions. All wheels are equipped with thread protection, which protects the bearings against dirt and threads. Vertical continuous edge protection on all four vehicle sides. Surface scratch resistant powder-coated, body in Hazet blue, drawers in black. Set contains: 1 tool module actuating tools 194-pieces consisting of: 1 HiPer lever-action reversible ratchet 1/4" 12 hexagon socket wrench sockets 1/4" 3; 4; 5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm 10 hexagon socket wrench sockets 1/4", long 4; 5; 6; 7; 8; 9; 10; 11; 12; 13 mm 5 socket wrench sockets for recessed TORX® screws E 4; 5; 6; 8; 10 5 hex screw sockets 1/4" TiN coated 3; 4; 5; 6; 8 mm 3 slotted screw sockets 1/4" TiN coated 3,5; 5,5; 8 mm 2 Phillips screw sockets 1/4" TiN coated PH 1; 2 2 Phillips screw sockets 1/4" TiN coated PZ 1; 2 6 TORX® screw sockets 1/4" TiN coated T 15; 20; 25; 27; 30; 40 1 enlarger from 1/4" to 3/8" 1 T-handle with sliding block 1/4" 1 extension 1/4" 55 mm 1 universal joint 1/4" 1 drive handle 1/4" 1 bit holder 1/4" 1 bit adapter 1/4” 1 bit set 51-piece consisting of: 1 adapter with magnet 1/4" solid hexagon socket to 1/4" hollow hexagon socket 4 bits for slotted screws 0,5 x 4; 0,6 x 4,5; 0,8 x 5,5; 1 x 6 mm 10 bits for Phillips PH 1 (4 items) 2 (4 items); 3 (2 items) 7 bits for Phillips PZ 1 (3 items); 2 (3 items); 3 6 bits for Allen key 2; 2.5; 3; 4; 5; 6 mm 17 bits for internal TORX® T 6; 7; 8; 9; 10; 15 (2 pieces); 20 (2 pieces); 25 (2 pieces); 27 (2 pieces); 30 (2 pieces); 40 (2 pieces) 6 bits for recessed TORX®BO T 10; 15; 20; 25; 27; 30 1 HiPer lever-action reversible ratchet 3/8" 12 hexagon socket wrench sockets 3/8" 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 21; 22 mm 8 hexagon socket wrench sockets 3/8", long 12; 13; 14; 15; 16; 17; 18; 19 mm 4 hex screw sockets 3/8" TiN coated 5; 6; 8; 10 mm 3 extensions 3/8" 74; 150; 254 mm 1 universal joint 3/8" 1 HiPer lever-action reversible ratchet 1/2" 20 hexagon socket wrench sockets 1/2" 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 20; 21; 22; 23; 24; 26; 27; 28; 30; 32 mm 11 hex screw sockets 1/2" TiN coated 4; 5; 6; 7; 8; 9; 10; 12; 17; 19; 22 mm 9 TORX® screw sockets 1/2" TiN coated T 20; 25; 27; 30; 40; 45; 50; 55; 60 8 internal multipoint XZN screw sockets 1/2" TiN coated M5; 6; 8; 10; 12; 14; 16; 18 7 screw sockets 1/2" TiN coated for internal Ribe CV M6; 7; 8; 9; 10; 12; 14 1 T-handle with sliding block 1/2" 2 extensions 1/2" 123; 248 mm 1 universal joint 1/2" 1 tool module screwdrivers 40-piece consisting of: 12 double open ended spanners 6 x 7; 8 x 9; 10 x 11; 12 x 13; 14 x 15; 16 x 18; 17 x 19; 21 x 22; 22 x 24; 24 x 27; 30 x 32; 34 x 36 mm 19 combination spanners 8; 9; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 21; 22; 24; 27; 30; 32; 34 mm 9 double ring spanners, offset 6 x 7; 8 x 9; 10 x 11; 12 x 13; 14 x 15; 16 x 17; 17 x 19; 21 x 22; 24 x 27 mm 1 tool module open-end spanner with ring ratchet, 12-piece: 12 open ended spanners with ring ratchet 8; 9; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19 mm 1 tool module screwdrivers 57-pc consisting of: 2 slotted screwdrivers, short, 3,5; 5,5 mm 2 Phillips screwdrivers, short PH 1; 2 4 slot screwdrivers 3; 4; 5.5; 6.5 mm 2 Pozidriv screwdrivers PH 1; 2 5 slotted screwdrivers, with hexagon wrench 4; 5,5; 6,5; 8; 10 mm 4 Phillips screwdrivers, with hexagon wrench PH 0; 1, 2, 3 6 screwdrivers for recessed TORX® T 10; 15; 20; 25; 27; 30 1 electronic screwdriver set for slot/Phillips, 7 piece 1 electronic screwdriver set for internal TORX®, 7-piece, T5-T15 1 phase tester 1 Allen key set, 9-piece, 1.5–10 mm 1 Allen key set for recessed TORX®, 8-piece, T9–T40 1 tool module pliers 4-pieces consisting of: 1 universal pliers 160 mm 1 power side cutter 180 mm 1 pointed pliers, curved 200 mm 1 universal pliers 260 mm 1 tool module impact tools 8-pieces consisting of: 1 engineer´s hammer 500 g 2 flat chisels 18; 21 mm 5 pin punches 3; 4; 5; 6; 8 mm 1 HSS twist drill set, 25-piece, Ø 1-13 mm increasing by 0.5 mm Manufacturer: HAZET-WERK Hermann Zerver GmbH & Co. KG, Güldenwerther Bahnhofstr. 25-29, 42857 Remscheid, DE, +4921917920, info@hazet.de
