Description

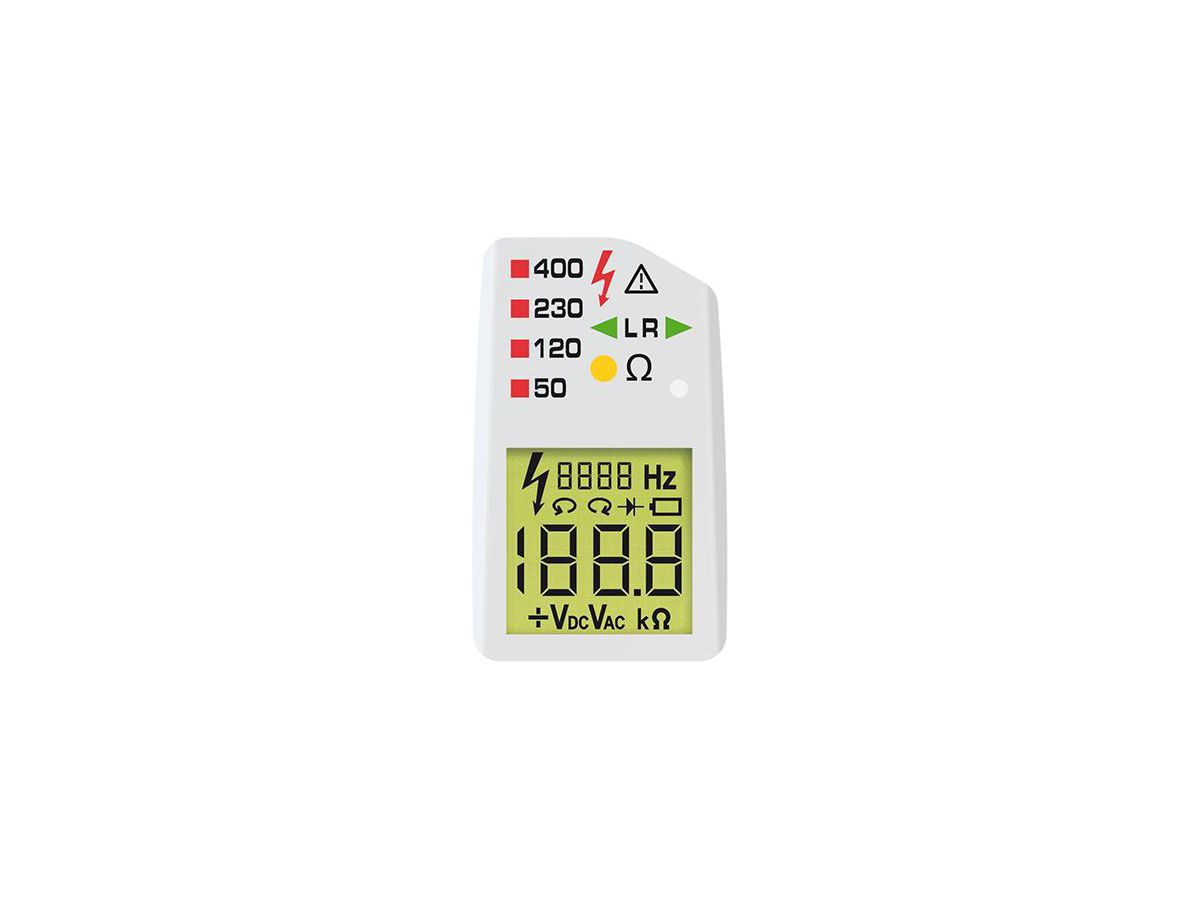

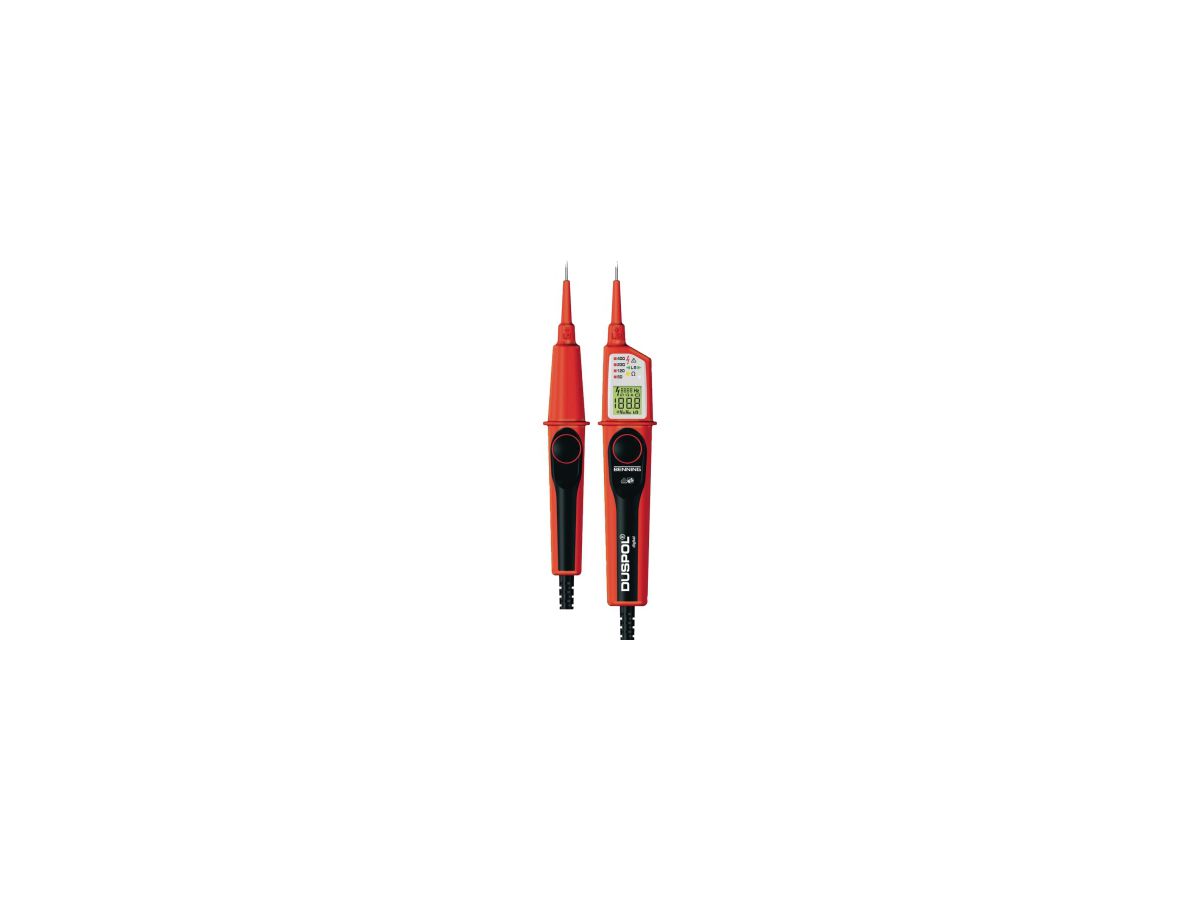

DUSPOL® digital voltage tester Design: Tested and approved according to EN/IEC 61243-3 (DIN VDE 0682 Part 401), bipolar. Casing made of impact-resistant and unbreakable plastic, with rubber handle zone, two test handles and flexible connection cable. Direct display without push-button (high resistance), load connection via push buttons (low resistance), vibration alarm. No-contact phase tester/cable break detector (yellow LED flashing). Measuring point and display lighting. Supplied with batteries, voltage display from 50 V even when the batteries are empty. Application: For professional testing of DC and AC voltages, continuity, diode, phase sequence, resistance and frequency as well as for phase and polarity tests with deliberate triggering of the earth leakage circuit breaker.

Specifications

Vibrationsalarm	ja
Schutzart	IP 65
Wechselspannung	1-1200 V
Widerstand	0,1 kOhm-300 kOhm
Drehfeldprüfung	LED, grün
Durchgangsprüfung	LED, gelb/Summer
Batteriebestückung	2 x Micro AAA/LR03
Frequenz	1-1000 Hz
Anzeige	LED/LCD
Lastzuschaltung	ja
Gleichspannung	1-1200 V
Messverfahren	TRUE RMS
Messstellenbeleuchtung	ja
Messkategorie	CAT IV 600 V, CAT III 1000 V
Polaritätsprüfung	LED
Phasenprüfung	LED, rot
Modell	DUSPOL® digital
