Description

Torque wrench 3/4", with push-through square. Design: Utmost precision also in constant use. Adjustable torque wrench with square drive and integrated ratchet function for controlled clockwise and counterclockwise tightening. Robust steel pipe construction, powder coated, with galvanised ratchet. Articulated mechanism with a slide roller guarantees acoustic and tactile trigger signal. Light and comfortable scale setting by turning the handle and locking on push knob, extremely high accuracy due to micrometer scale ring. Delivery includes test certificate according to DIN EN ISO 6789. Application: For controlled screw tightening in the corresponding torque range for all industrial manufacturing areas. Supplied with push-through square. Supplied in a carton.

Specifications

Vierkantantrieb	3/4 Zoll
Skaleneinteilung	1,0 N·m
Skalenteilung	1,00 N·m
Skalenbereich	140-750 N·m
Länge	1240 mm
Antrieb	3/4 Zoll
Auslösegenauigkeit	± 3 %

Similar designs

Sperrgut

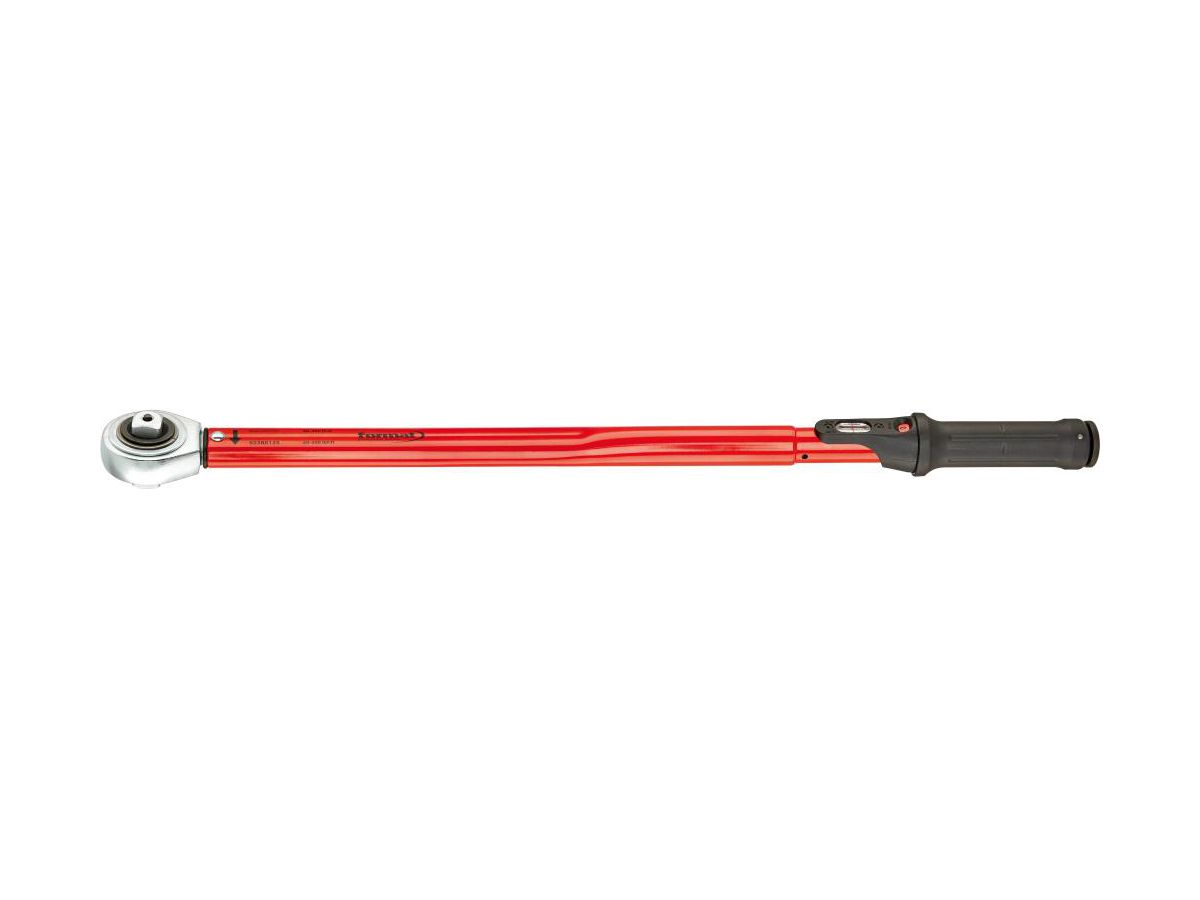

Torque wrench
150-750Nm 3/4" FORMAT

Item No: 4000590.0750
