Description

Thread tapping quick-change chuck with elastic length compensation Design: With steep taper shank. Application: Can be used for right-hand and left-hand threads for both horizontal and vertical machining on CNC machining centres, special and drilling machines. Cutting of the tap due to differences between the tap pitch and the machine feed is prevented by the length compensation on compression and tension. The use of a longitudinal ball bearing guide in the length compensation makes the feed particularly durable and smooth-running at high torques. Manufacturer: Einkaufsbüro Deutscher Eisenhändler GmbH, EDE Platz 1, 42389 Wuppertal, DE, +4920260960, webkontakt@ede.de

Specifications

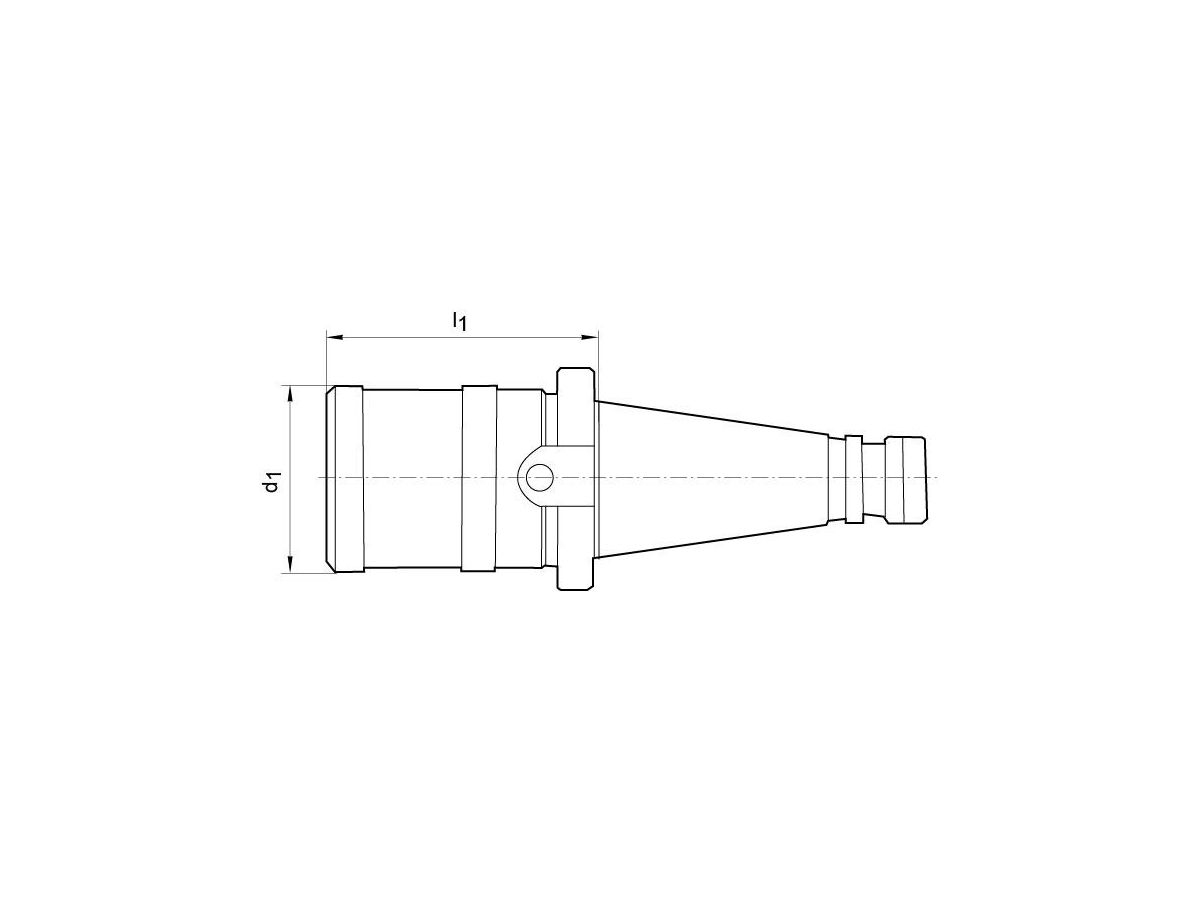

SK	50
Außen-Ø d1	55 mm
Auskraglänge l1	90 mm
Einsatz-Ø	31 mm
für Einsatz Typ	FE2/FES2
für Gewindebohrer	M6 - M20
Längenausgleich Druck	12,0 mm
Längenausgleich Zug	12,0 mm
