Description

Subland drill for crash barrier assembly Design: Subland drill with cross grinding and variable spiral grooves. Chuck slippage is avoided by the 3-surface shank. The special cone in the cylindrical area prevents tipping or catching during the drilling process. Drill chuck protection with integrated attachment ring. With laser print of hole Ø and speed. The hole Ø can still be read with the tool rotating. Application: Specially for holes in crash barriers and fully galvanised materials. Insert depth up to 3.5 mm. Note: Use of drilling oils possible.

Specifications

Stähle bis 1000 N/mm²	geeignet
Schaft-Ø	10,0 mm
Stähle bis 850 N/mm²	empfohlen
Stufenlänge	4-6 mm
Länge	67 mm
Gesamtlänge	67 mm
Rost- und säurebeständige Stähle (INOX)	geeignet
Bohrstufen-Ø	6-18 mm

Similar designs

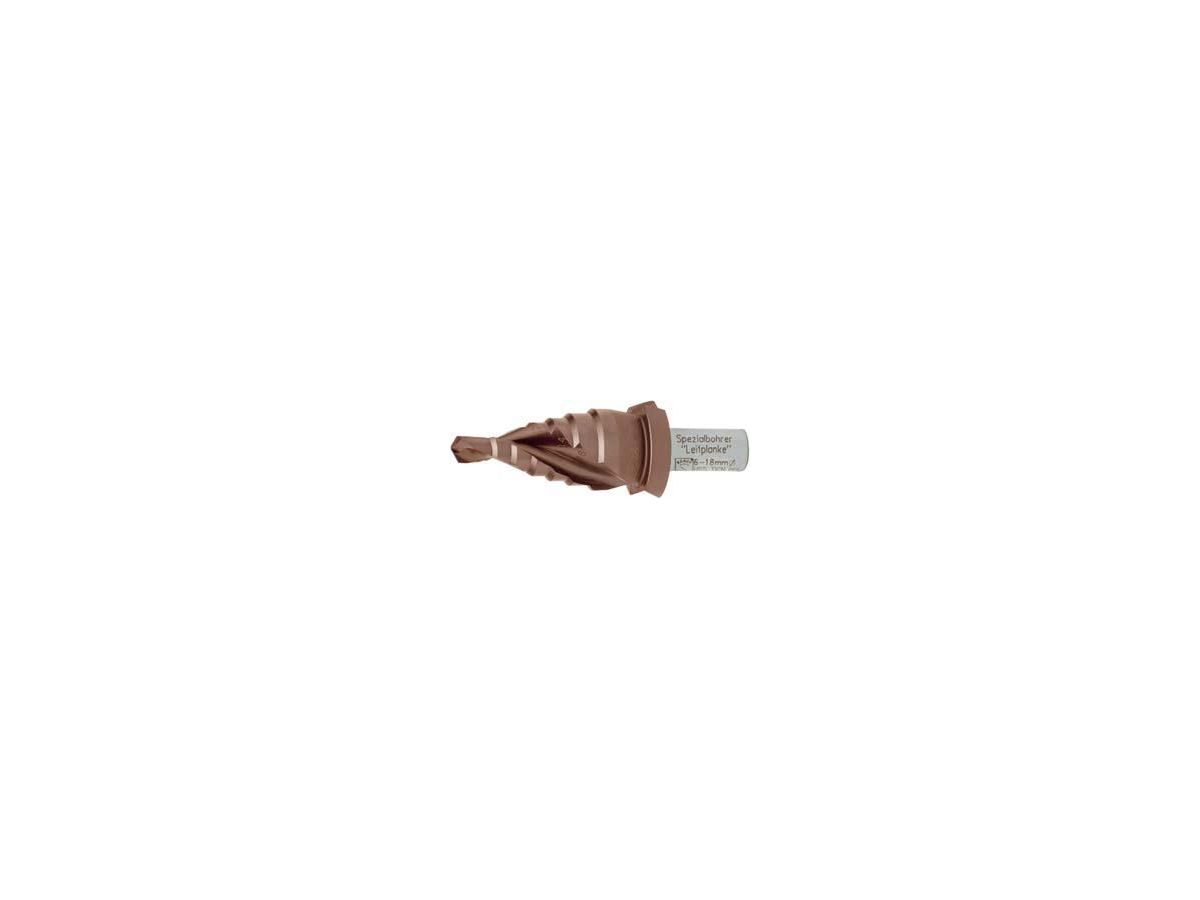

Spec. step drill HSSTiCN
6-18mm PBC Exact

Item No: 1004196.0100
