Description

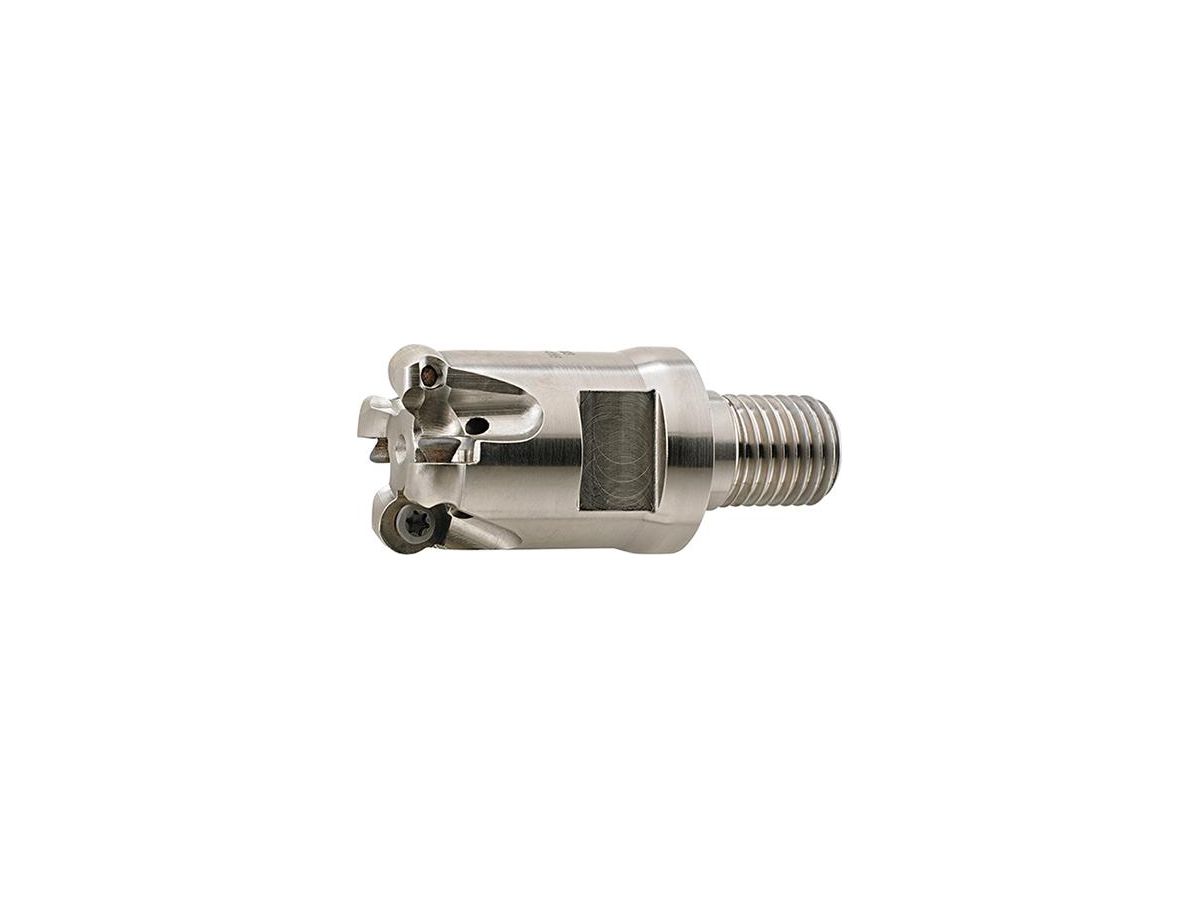

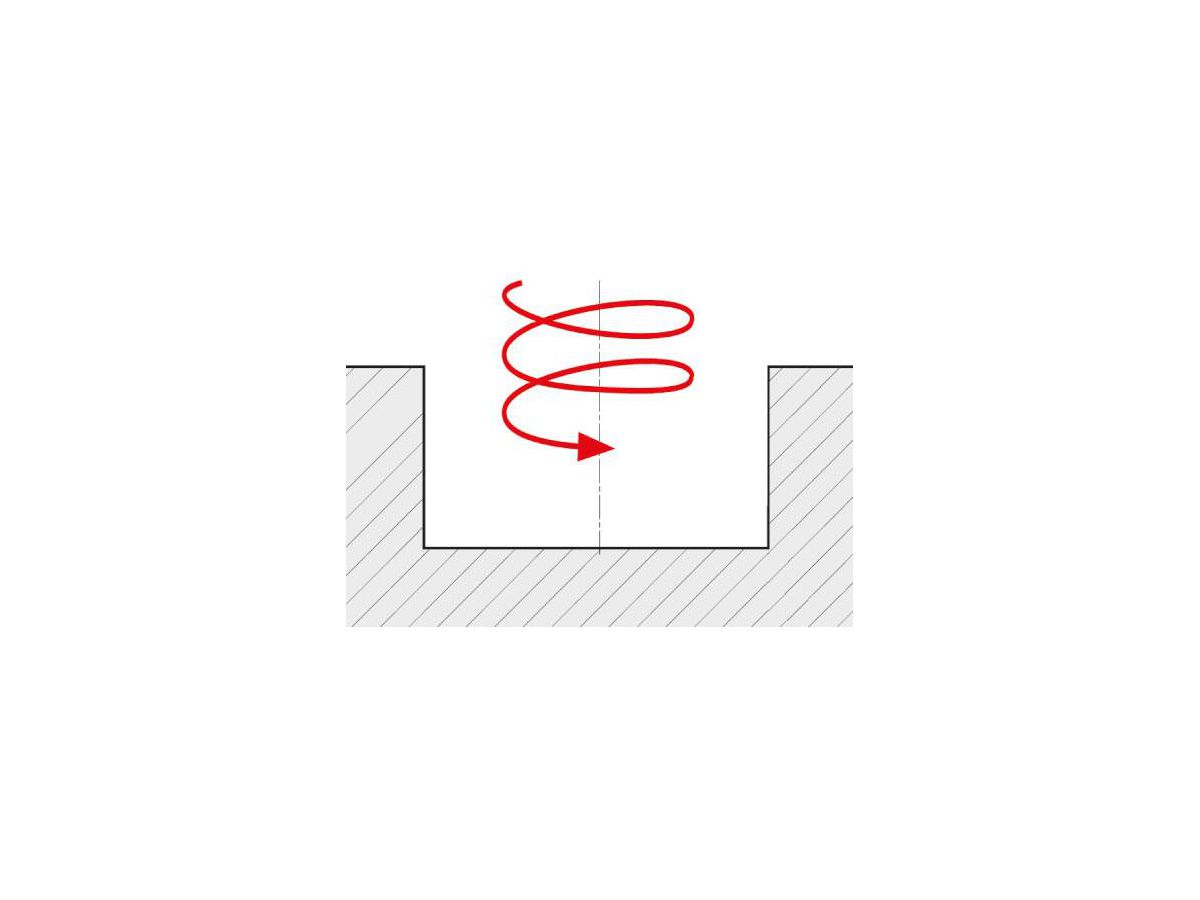

Copy mill (screw-in cutter) Design: Face milling cutter and copy mill (screw-in milling cutter), tool carrier nickel-plated. Supplied without indexable inserts, without screwdriver. Application: Universal use for face and copy milling, suitable for tool and mould construction, for diagonal and axial insertion as well as drill circular milling. Note: Extension for screw-in milling cutter see #Seitenverweis4561861#.

Specifications

Durchmesser	35,00 mm
Ø D	35 mm
Abmessungen Ø d1	10 mm
Abmessungen Ø d h6	17,0 mm
Abmessungen L	42 mm
IK	ja
Schnitttiefe ap/max.	2,5 mm
Wendeschneidplatte	RDHX/RDGT/RDHT..10...
Anzahl Schneiden	5
M2	M16
Ø d1 = k10	35,00 mm
