Description

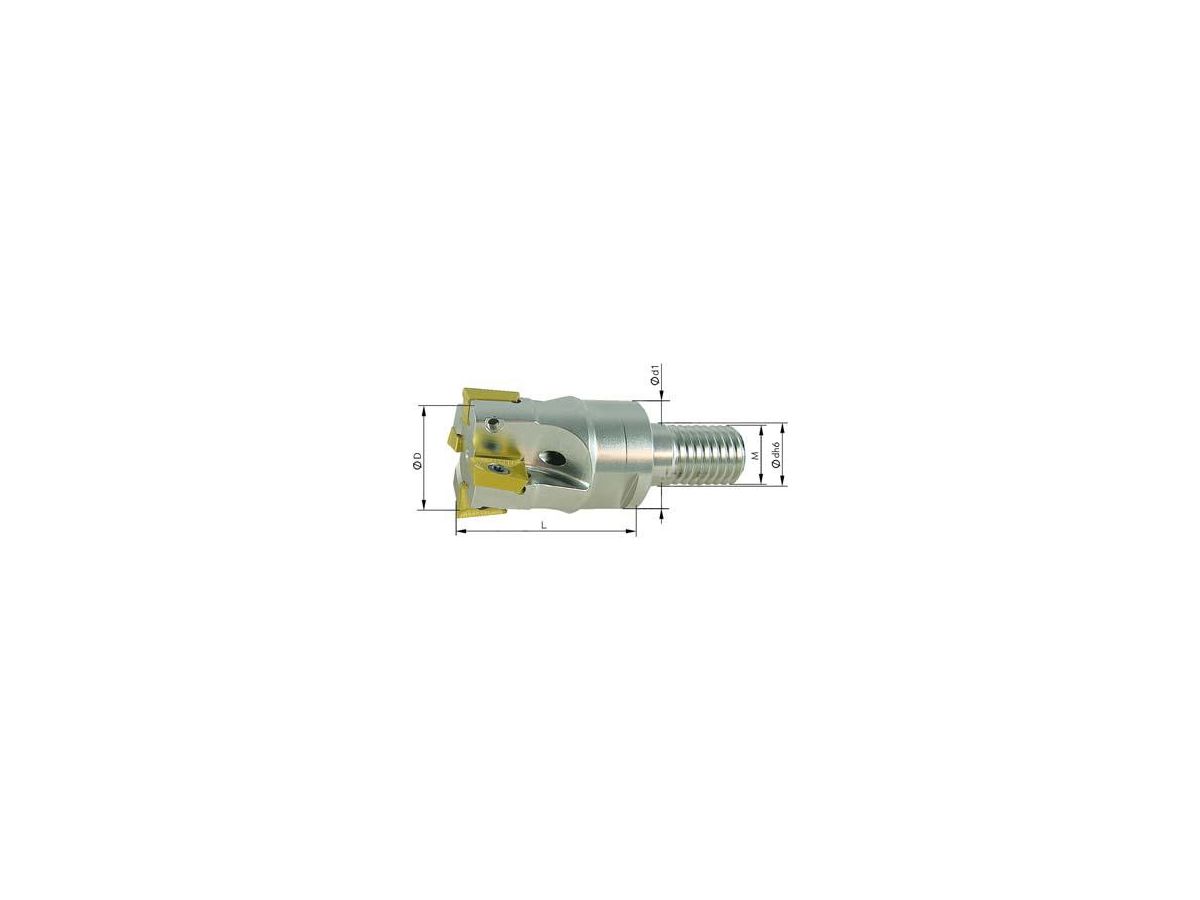

Screw-in cutter, 90° Design: Screw-in milling cutter 90°, tool carrier nickel-plated. Supplied without indexable inserts, without screwdriver. Application: For angle and slot cutting, inward copying, circular and peripheral milling as well as drill circular milling, for universal applications. Note: Extension for screw-in milling cutter see #Seitenverweis4561861#.

Specifications

Durchmesser	32,00 mm
Ø D	32 mm
Abmessungen Ø d1	29,0 mm
Abmessungen Ø d h6	17,0 mm
Abmessungen L	43 mm
IK	ja
Schnitttiefe ap/max.	10 mm
Wendeschneidplatte	APKT 10...
Anzahl Schneiden	5
Abmessungen M	M16
Ø d1 = k10	32,00 mm
