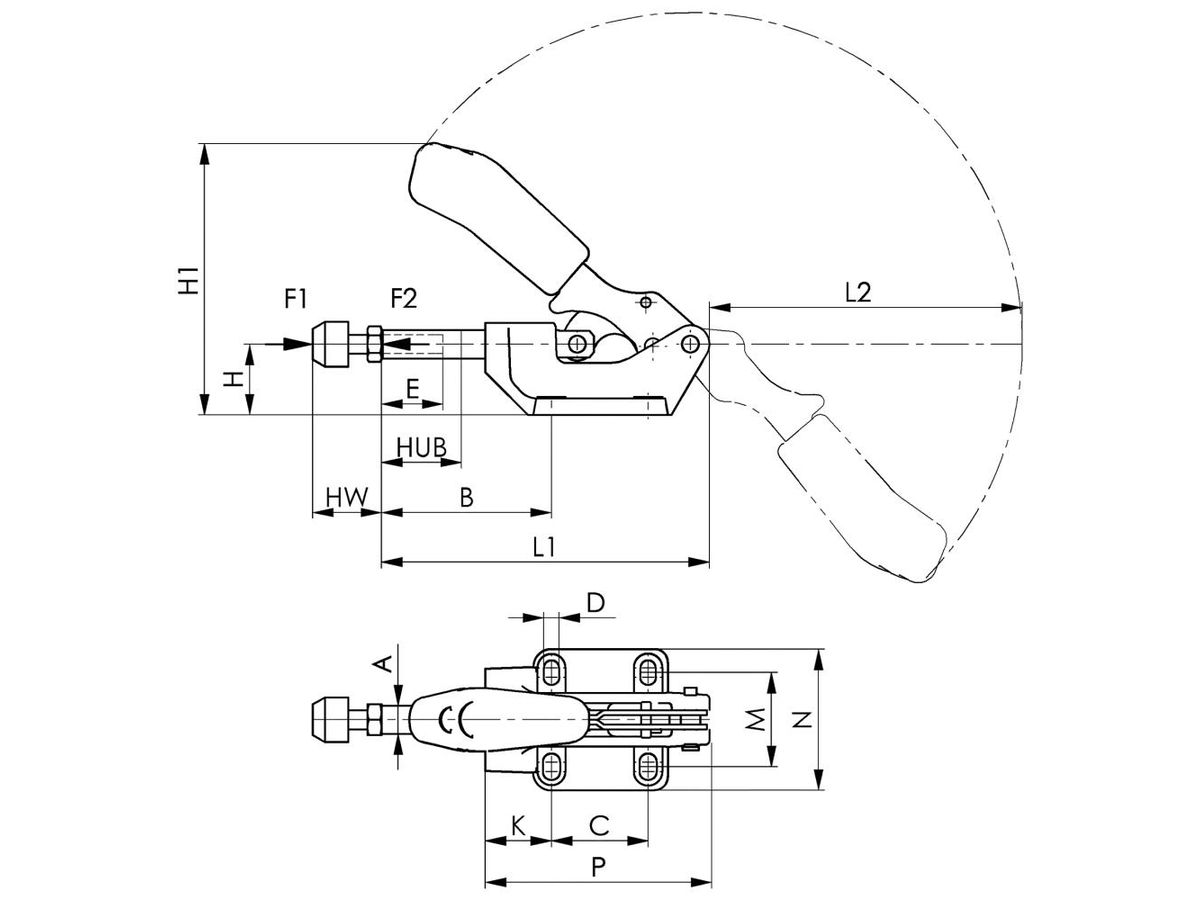

Push rod clamping device, heavy-duty design Design: Push-pull clamping devices (push rod and hand lever running parallel). Heavy design with long push rod guide. Base body made of malleable iron, lacquered. Galvanised and passivated. Lever components and push rod mode of tempered steel. Rustproof rivets for size 3 run in case-hardened bearing bushings. Bearing bushings are greased. Handle made of red, oil-resistant plastic. For size 3: Ergonomic, oil-resistant handle with large hand rest and soft component. Application: Can be used as push-pull clamping device. Ideal for deployment in special clamping devices and in series production. Scope of delivery: Complete with tempered, galvanised pressure screw.

Specifications

Gewicht	1115 g
Größe	5
h1	137,5
~L1	156
K	45
Hub	40
HW max.	50
HW min.	30
N	71
P	121
B max.	98
B min.	58
Andrückschraube	M12 x 50
A	16
C	41
d12	8,5
E	50
F	10 kN

Similar designs

Push rod clamp 6842
size 3 AMF

Item No: 2000321.0003



Push rod clamp 6842
size 5 AMF

Item No: 2000321.0005



Push rod clamp 6842
size 7 AMF

Item No: 2000321.0007
