Description

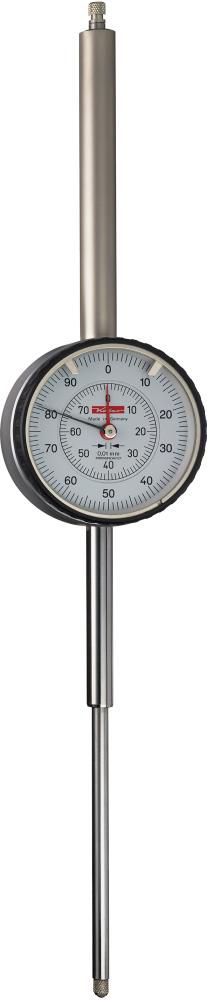

Precision dial gauge with large measurement range Design: Measuring bolts and clamping shaft (Ø 8 mm h6 at measurement range 100 mm Ø 10 mm h6) are made of resistant, stainless steel, the measuring bolt is lapped. The bearing points on the measuring instruments are embedded in ruby jewel components. With shockproof wheel, which protects the measuring bolt against damage. Manufacturer: Käfer Meßuhrenfabrik GmbH & Co. KG, Hahnstr. 11, 78054 Villingen-Schwenningen, DE, +49772083410, info@kaefer-messuhren.de

Specifications

Gehäuse-Ø	58 mm
Messbereich	80 mm
1 Zeigerumdrehung	1,0 mm
Ablesung	0,01 mm
Ableseart	Manuell
