Description

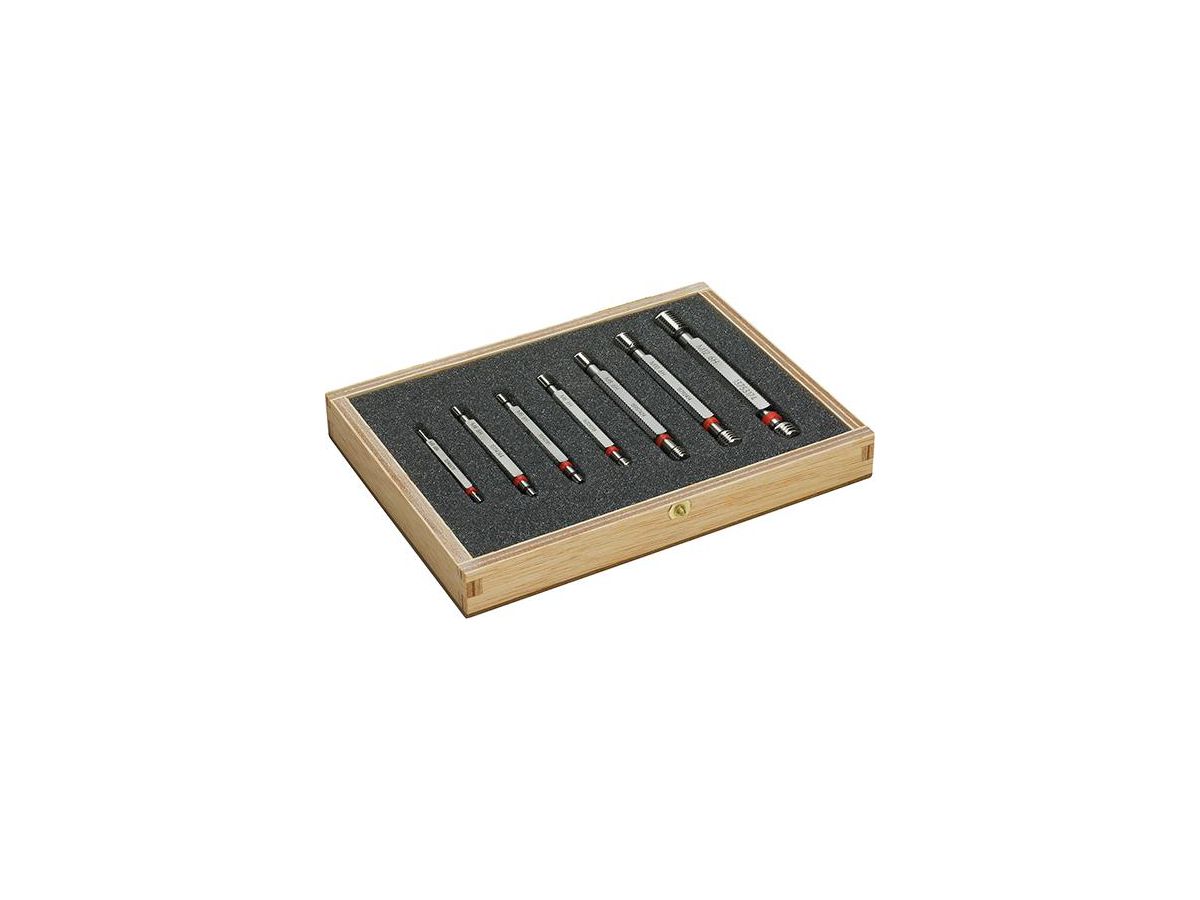

Screw plug gauge set, 7-piece Design: Made of hardened gauge steel 6H, with go and no-go sides. For metric ISO regular threads DIN 13. Supplied in a case. Application: For inspecting threads. Note: In order to prevent premature breaking away of the thread gear, the first thread gear is ground and removes coarse dirt. Intermediate dimensions and other tolerances available on request.

Specifications

Typ	M
Toleranzklasse	6H
Gewinde-Ø x Steigung	M3-M12
Gewinde	M3-M12
Satzinhalt	M3; M4; M5; M6; M8; M10; M12
