Description

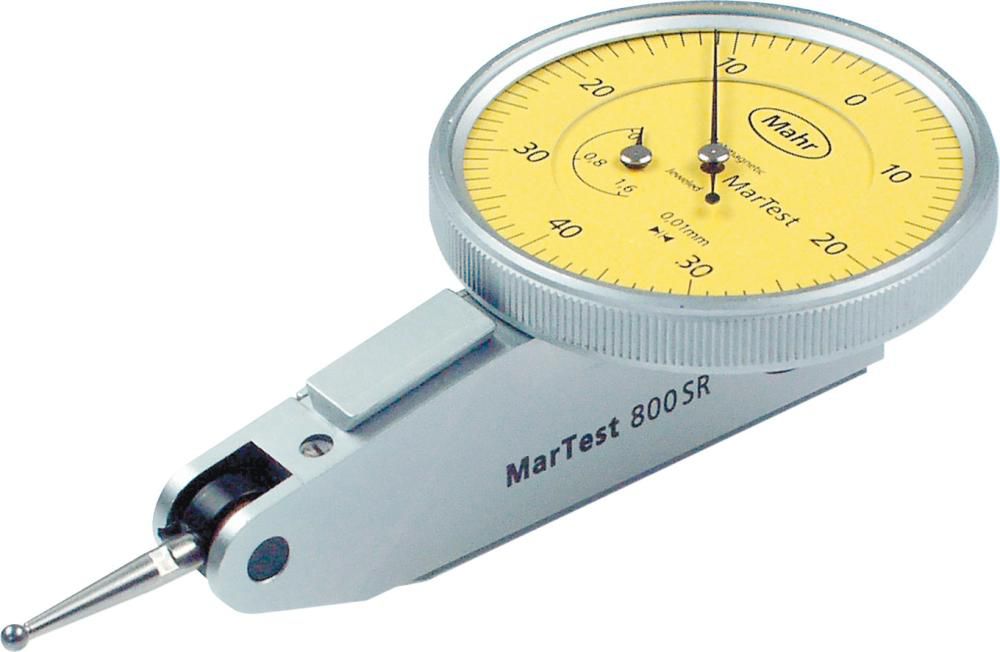

Lever gauge Design: High-contract dial, sealed with O ring, safety disk made of mineral glass for highest protection against breakage, scratching, hot chipping as well as the highest resistance solvents, matt-chrome-plated protective housing with 3 integrated dovetail guideways, shockproof measuring unit, antimagnetic design, automatic adjustment to the probe direction, causing error-free reading, ball-bearing mounted double lever, overload protection by means of slip clutch, measuring insert with carbide ball. Supplied with key to exchange measuring inserts, measuring insert Ø 2 mm, clamping shaft (Ø 8 mm h6), in case. Application: Measurement of concentricity, axial runout, parallelism and evenness deviations, centring of shafts or holes, parallel or right-angled alignment of workpieces.

Specifications

Tasterlänge	13,6 mm
Skalenbezifferung	40-0-40 mm
Gehäuse-Ø	38 mm
Messbereich	0,8 mm

Similar designs

MAHR-Fühlhebelmessgerät
Teilung 0,01 mm

Item No: 3070127.0700



MAHR-Fühlhebelmessgerät
Teilung 0,01 mm

Item No: 3070127.0800
