Description

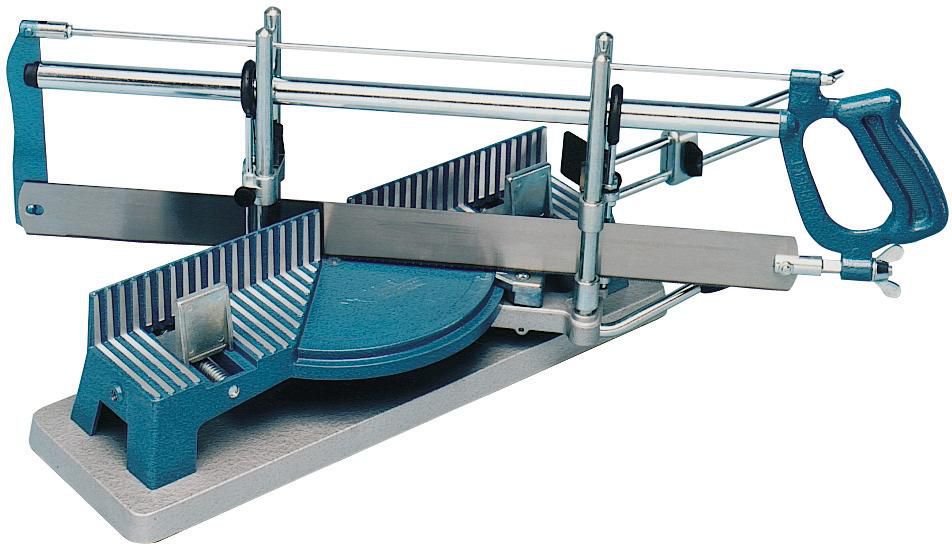

Precision mitre saw Design: Base plate made of die-cast aluminium with roughened surface, non-slip rubber feet and 2 material clamps as well as 4 guide rods for precise and solid guidance of the saw frame. With end stop for both side for serial cuts, cutting depth adjustment as well as automatic locking function at 90°, 45°, 36°, 30°, and 22.5°. Angle infinitely adjustable left and right. The bow saw can be easily hung on the guide rods with the double sheet spring. Plus the tensioning screw and tensioning wire give the saw frame double tension. With strong, closed bow handle. Supplied with universal saw blade with hardened teeth for wood, light metal and plastic.

Specifications

Blattgröße	550 x 40 mm
Gewicht	7,5 kg
Tischlänge	400 mm
Typ	P III
Schnittbreite 45°/90°	110/160 mm
Schnitthöhe	120 mm

Similar designs

KÜPPER Gehrungssäge Perfekt PIII
teilmontiert

Item No: 1005518.0100
