Description

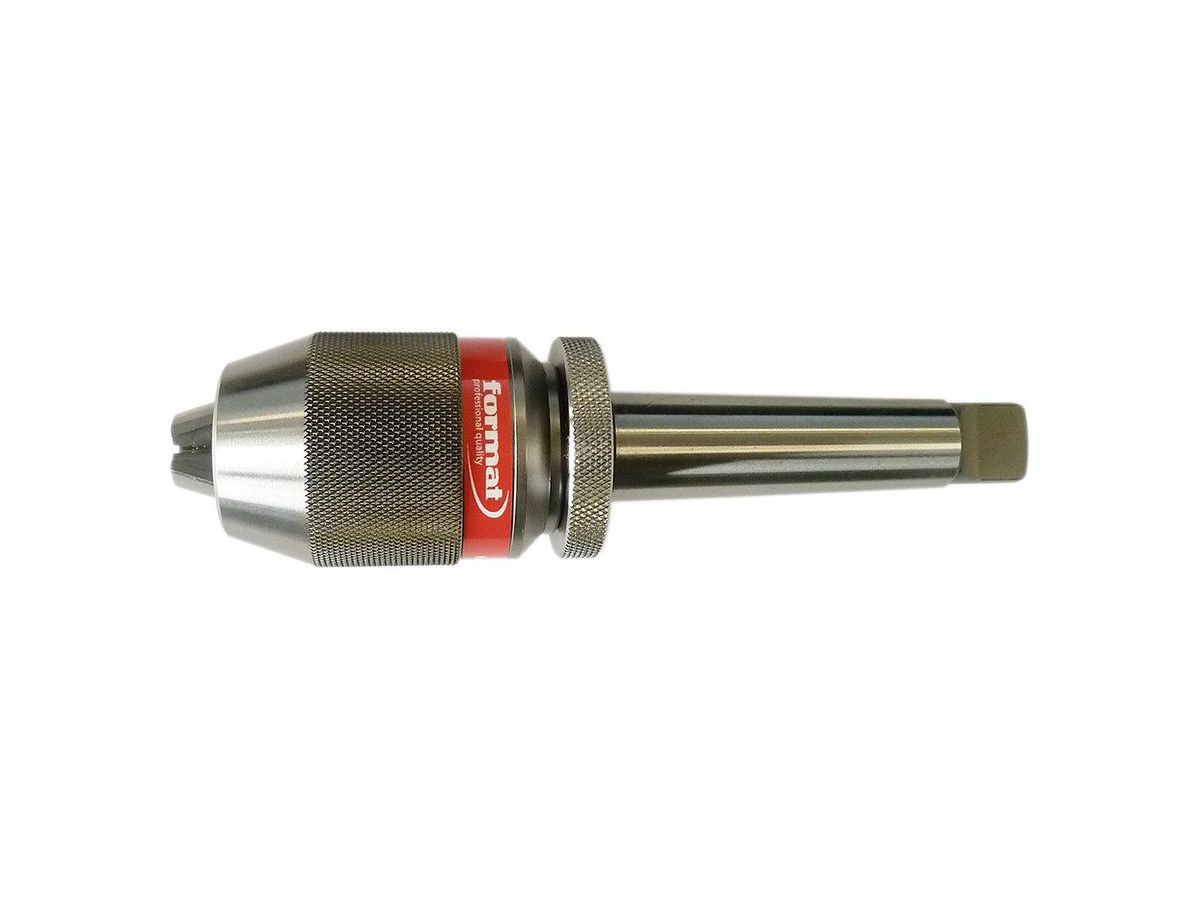

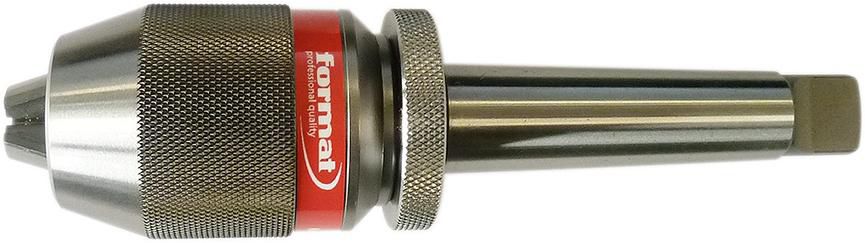

High-performance keyless drill chuck SBF-plus Design: Keyless and self-clamping with mounting shank (one-piece). Chuck and mounting shank form one unit. Optimal stability and higher concentricity is achieved by compact design (based on DIN ISO 10888). Application: For high endurance stress as well as precision work on drills, drilling machines and special drilling units. Note: The advantage over a two-part system is the length shorter by a total of 21 mm and thus is advantageous for machines with a small working area. Available with diamond-coated jaws on request.

Specifications

Länge geschlossen	97,5 mm
Länge geöffnet	85,0 mm
Aufnahmeschaft	MK 3
Futter-Ø	50,0 mm
Spannbereich	1,0-13,0 mm_2490
