Description

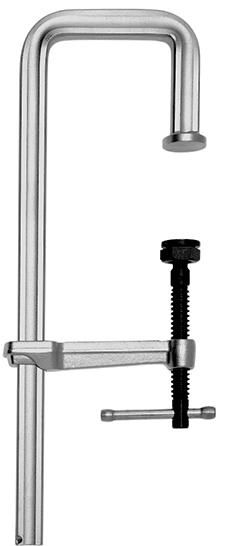

High-performance U screw clamp Design: U-shape-bent fixed bracket with pressure plate. Slide rail, fixed bracket and pressure plate made from one piece of structurally optimised, cold-drawn profile steel; mobile bracket made of forged and galvanised zinc-plated heat-treatable steel; smooth-running spindle with rolled, strain-hardened and phosphate-treated trapezoidal thread. Heat-resistant, high-performance pressure plate with large nail head, pivots up to 35°, replaceable, with hardened and oil-soaked sintered steel insert. With pushed-through T-handle. Application: Especially for clamping forces up to 12 kN . For comprehensive clamping, e.g. to T-bearings and double T-bearings. Fast, low-vibration clamping.

Specifications

Spannweite	300 mm
Ausladung	140 mm
Spanntiefe	100 mm
Gleitschiene	30 x 15 mm

Similar designs

Hi-perf. clamp
300mm u-shaped Bessey

Item No: 4000041.0030
