Description

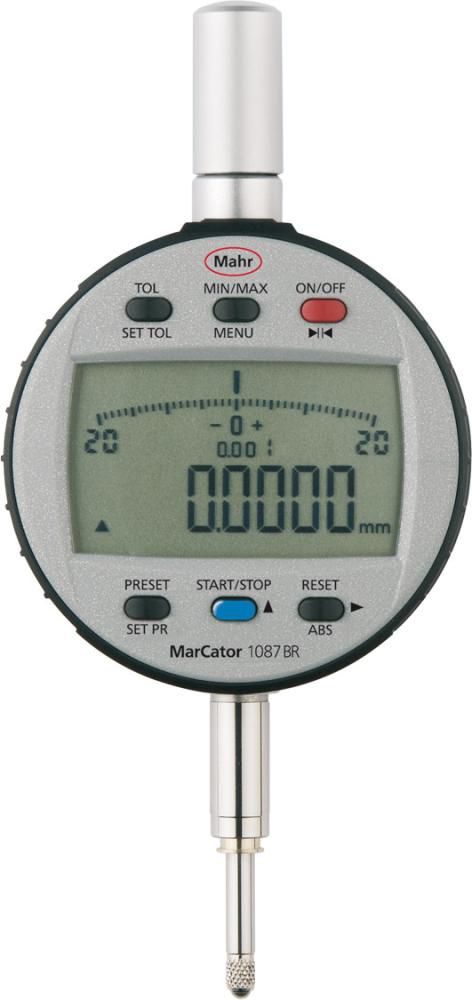

Digital dial gauge with Integrated Wireless Design: Clamping shaft and measuring bolts made of rustproof, hardened steel. Digit height on LCD display 8.5 mm, operating and display part can be rotated by 280°. With interchangeable stylus points M2.5. Clamping shaft Ø 8 mm, protective cap at end of measuring bolt. With data output via radio transmission, RS232, USB and Digimatic. Delivery with CR2450 battery. Functions: Automatic switch-on, mm/inch changeover, key lock for set zero position, no need to reset after switch-on (absolute system), MAX/MIN memory for reverse point search, START/STOP of reversal point, tolerance input, ABS (changeover from relative to absolute measurement), reset (zero setting) possible at any position, counting direction reversal, preset function (measured value presetting). Application: The reversal point is automatically determined by a 2-point inside or outside measurement through oscillation, than a preset value can be simply assigned to it. During the measurement. the measured ACTUAL value is saved by the MIN or MAX function and shown in the display. In order to perform measuring movements with corresponding measuring accuracy, 64 measurement values are processed per second. Manufacturer: Mahr GmbH, Carl-Mahr-Str. 1, 37073 Göttingen, DE, +49 551 7073 0, info@mahr.com
