Description

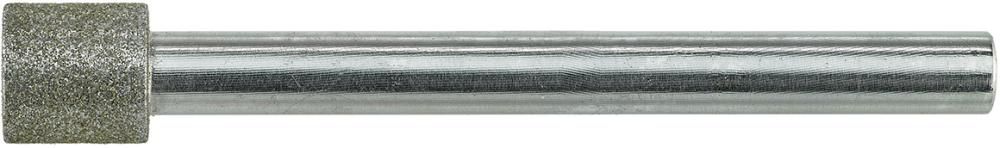

Diamond grinding pin, cylindrical shape Design: Especially suited to quick removal on galvanised coatings. Universal grain: D 126 – medium (to FEPA standard). Application: For tool and production grinding of hard materials such as tungsten carbide, ceramics - pre- and finish sintered - glass as well as some non-ferrous metals. Note: To avoid fringe heat damage to the workpiece and to increase the life of the tool we recommend the use of coolant lubricants. Recommended peripheral speed dry cutting: 8–18 m/s, wet cutting: 15-25 m/s. Application: For machining radii, drill holes and contours. From Ø 8 mm with recess on the front face.

Specifications

Ø	10 mm
Ø x Höhe	10 x 10 mm
Kunststoff GFK Holz	empfohlen
Guss	empfohlen
Gesamtlänge	70 mm_3471
Stein	bedingt geeignet
Schaft-Ø	6 mm
