Description

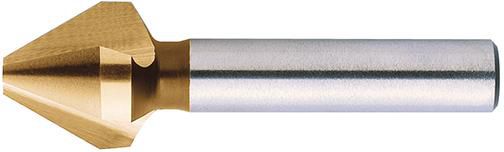

60° countersinks and deburring countersinks with cyl. shank Design: Axial and radial relief ground. With straight, u-shaped flute length and flutes ground from solid. Also provided with cutting and clearance angles for the most common materials. Application: Suitable for universal chatter and burr-free drilling, countersinking and deburring work for countersunk screws DIN 963, DIN 964, DIN 965, DIN 966 and DIN 7991 in one step. Please note the large countersink range! The excellent cutting properties and easy machining process result from the cone-shaped relief grinding on the coat and angle of rake. The countersink achieves the best results with the strongest feed and lowest cutting speed. Note: Sufficient supply of coolant is essential for uncoated designs.

Specifications

Nenn-Ø	16,0 mm
Gesamtlänge	63 mm
kleinster Ø	4,0 mm
Durchmesser	16,00 mm
Winkel	60 °
Stähle bis 850 N/mm²	empfohlen
Stähle bis 1000 N/mm²	empfohlen
Rost- und säurebeständige Stähle (INOX)	bedingt geeignet
Al, Al- und Mg-Leg.	empfohlen
Schaft-Ø	10 mm
Schneidstoff	HSS
