Description

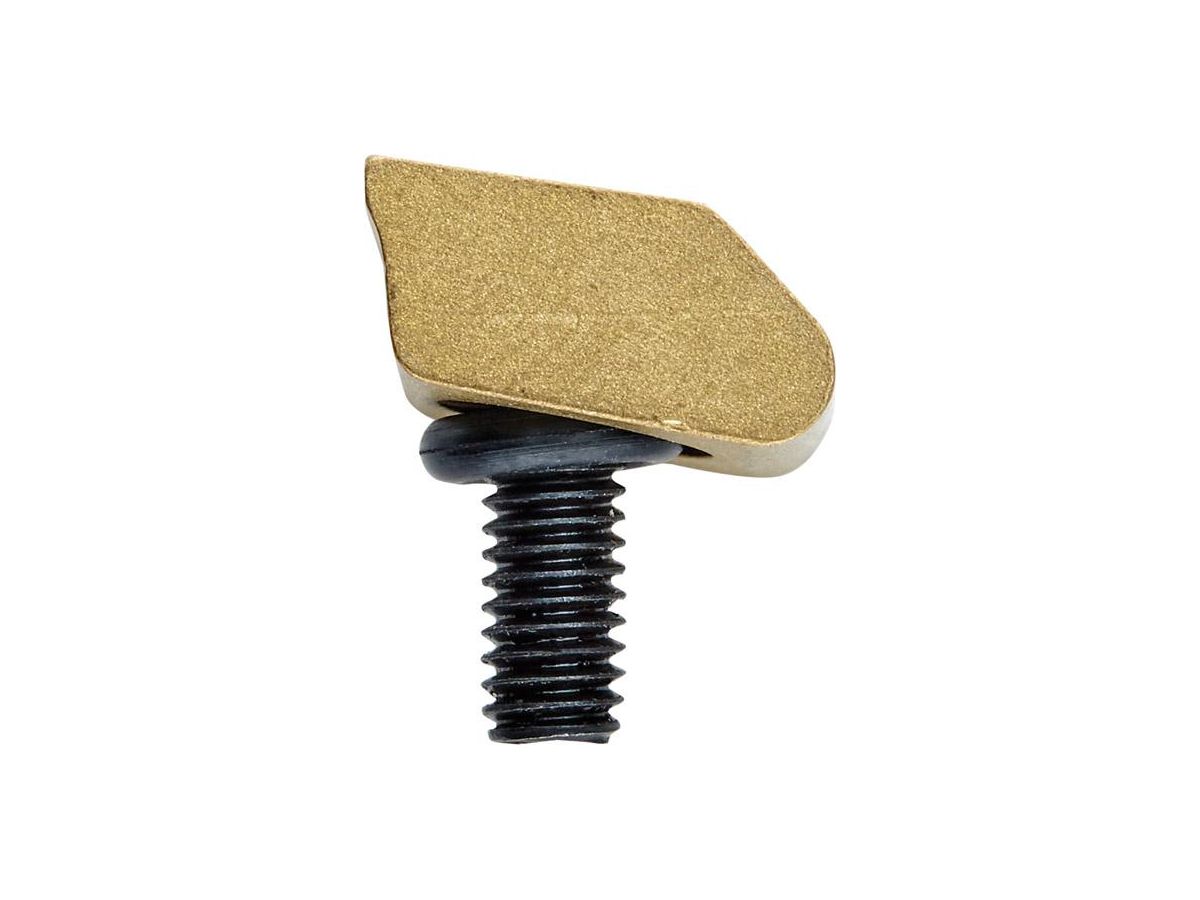

Tension clamp Pitbull made of brass with blunt edge Application: The rear of the clamp is supported forwards and downwards by tightening the screw (DIN 912). This results in an absolute draw-down effect for exact machining of different workpieces. Moreover, ideal for multiple clamping work. The compact dimensions allow multi-face machining without disturbing edges for the tool. Scope of delivery: Tension clamp with screw (DIN 912), clamp and O-ring. Made of brass, with blunt edge to prevent pinch marks Manufacturer: Mitee-Bite Products LLC, PO Box 430, Center Ossipee, NH 03814, US, 603-539-4538, miteebite@miteebite.com GPSR EU Contact: Ingenieurbüro Thiermann GmbH, Paul-Friedländer-Straße 8, 65203 Wiesbaden, DE, Tel. +49 611 - 71 654 69 - 0, E-Mail: info@ibt-gmbh.de

Specifications

Spannkraft	0,9 kN
Schraube	M2,5
Anzugsmoment	0,6 N·m
Maß a	3,8 mm
Maß B	3,6 mm
Maß C	9,5 mm
Maß D	1,9 mm
Maß h	5,59 mm
Klemmbreite	9,5 mm
Klemmweg	0,15 mm
Ausführung	stumpfe Kante
