Description

Circle cutter Application: Metal sheets up to 5 mm in thickness and plastics and sealing materials etc. up to 30 mm in thickness can be cut with GFS circle cutters. Thicker materials can also be cut out by using special blades. The various Ø can easily be set by moving the clamping device. For cutting out holes in sheet metal, composite materials and plastics. Cuts elastic materials with the corresponding blades (HSS-E, HSS-E, TiN coated; carbide soldered) without losses. Suitable for drill holes from 18 mm to 80 mm. The blades are clamped directly in the cross beams. Mounts for straight and drawing cuts are available. Scope of delivery: 1 centre drill Ø 5 mm. 1 HSS blade no. 122 for thin-walled sheets. Mount option for drawing blade no. 122 and straight blade no. 2 and no. 3.

Specifications

Schneidbereich	18-80 mm
Schaft-Ø	10 mm

Similar designs

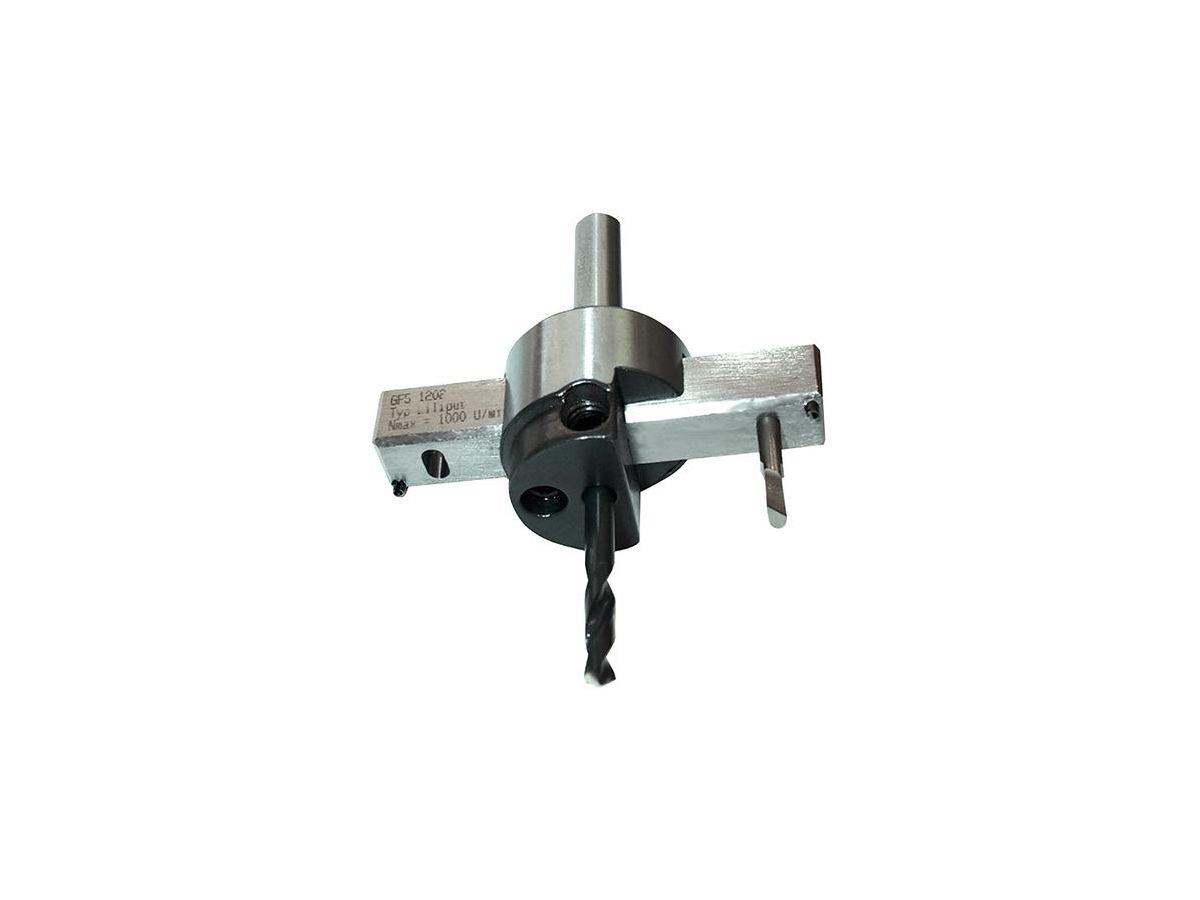

Circular cutter LILIPUT
10 mm cyl. GFS

Item No: 1000107.0010

237.85
