Description

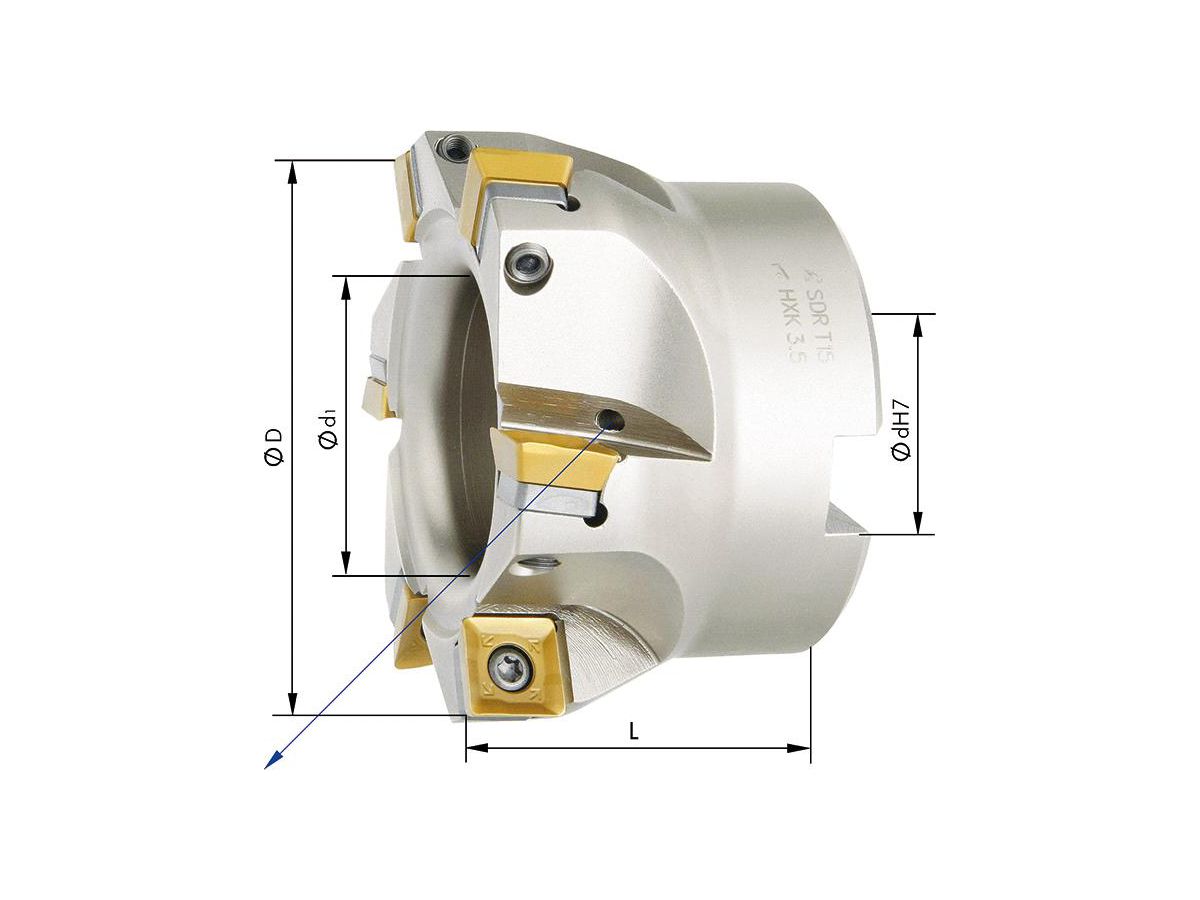

Angular milling head, 90° Design: End mill 90°, for production of exact 90° shoulders, tool carrier nickel-plated. Supplied without indexable inserts, without screwdriver. Application: For groove and angle milling, suitable for universal use, very soft cut, and high surface quality.

Specifications

Durchmesser	80,00 mm
Ø D	80 mm
Abmessungen Ø d1	38 mm
Abmessungen Ø d h7	27 mm
Abmessungen L	50 mm
Abmessungen L1	50 mm
IK	ja
Schnitttiefe ap/max.	10 mm
Zähnezahl	6
Wendeschneidplatte	SDMT 120508...
Anzahl Schneiden	6
Aufnahmetyp	Fräsdornaufnahme
Abmessungen L1	50 mm
Ø d1 = k10	80,00 mm
