Description

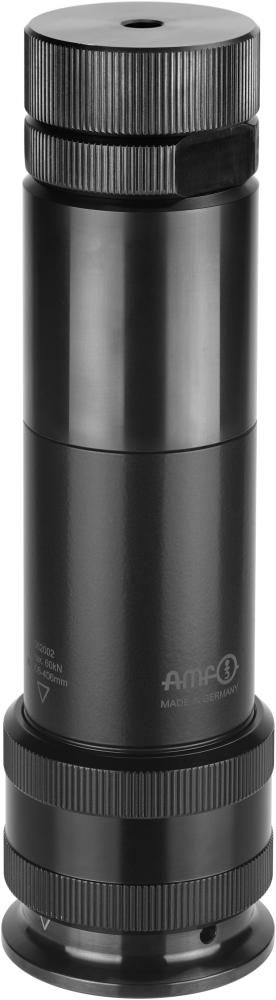

Screw jack element Design: With locknut for locking, centring hole diameter 12 mm. Spindle with trapezoidal thread completely made of quenched and heat-treated steel, spindle head burnished. Mount and base body made of tempered steel, burnished. Application: Can be used on T-slots and grid plates by means of adapters which are screwed into the foot element. The individual elements are plugged together and connected in a process-safe manner by means of a threaded ring. The installation tool enables operation of the lock nut and foot elements as well as the thread adapters. Note: The use as an head element in the modular screw jack allows a maximum height of 1626 mm with a permissible support force of 60 kN. Plus, there is a risk of buckling. Do not adjust under load. Manufacturer: Andreas Maier GmbH & Co KG, Waiblinger Str. 116, 70734 Fellbach, DE, +4971157660, amf@amf.de

Specifications

H min.	306 mm
H max.	406 mm
Tragkraft	60 kN
Höhe	40x7 mm

Similar designs

AMF Schraubbockelement
6425S-406mm

Item No: 2002233.0100
