Description

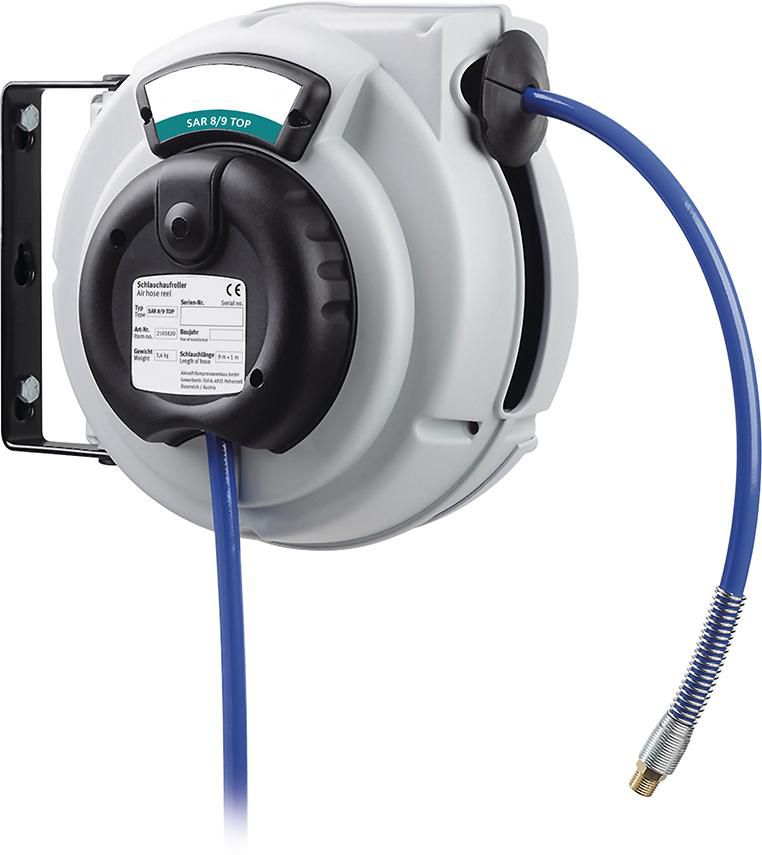

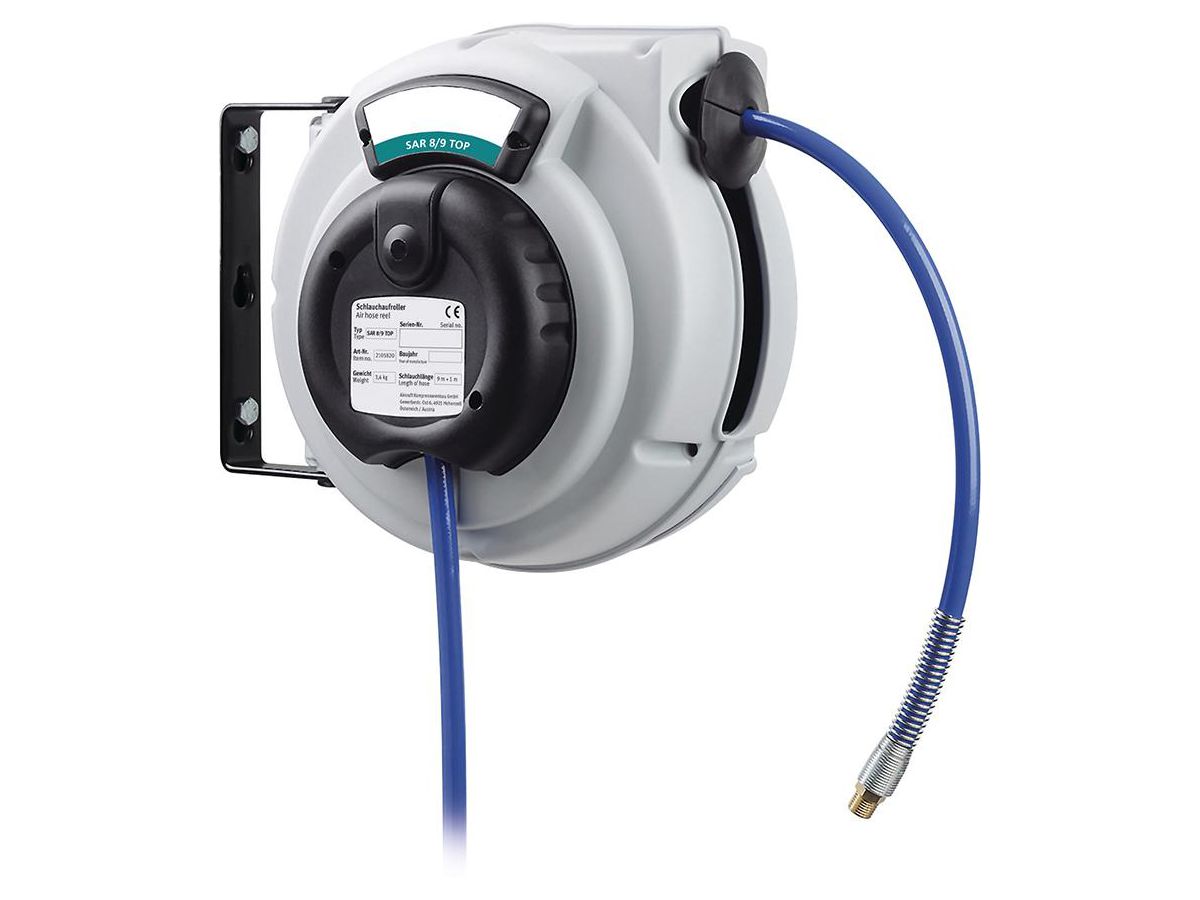

Automatic hose reel Design: Compact, rugged, shock-resistant and pivoting housing for wall or ceiling mounting. With blocking means for securing the compressed air hose against reverse flow, can be turned off if necessary. The return springs are made from steel and ensure a complete and even return of the compressed air tube. Delivery with compressed air hose made from polyurethane with coupling and connection thread 1/4" OT. Application: For organisation and safety at the workplace. The avoidance of tripping hazards is an important contribution to accident prevention. Ideal for commercial businesses and industry.

Specifications

Höhe	275|mm
Gewicht	3,4 kg
Länge	9 m
Innen-Ø	8 mm
Breite	190|mm
Betriebsdruck	15 bar
Außen-Ø	12 mm
Schlauchlänge	9 m
Betriebstemperatur	-5 – 45|°C
Arbeitsdruck	max. 15 bar
Abmessung	325 x 190 x 275 mm
Gewicht netto	3,4|kg
