Description

3D probe New Generation Design: Further development of the Universal 3D probe, with improved mechanism and new, compact, handy housing, for incorporating in the milling spindle or countersunk head. The probe tip is changed without requiring a tool; recalibration of the probe is not necessary. For maximum measuring accuracy, all 3D probes are individually measured and aligned during installation. Application: For setting workpiece zero points, length and depth measurements on milling and grinding machines (insulated probe tip) as well as for centring holes and spindles. Also used for testing the straightness and evenness of surfaces. Scope of delivery: 3D probe with short probe tip.

Specifications

Ableseart	Manuell
Aufnahmetyp	Schaft 10 mm
Anzeigegenauigkeit	0,01 mm
Schaft-Ø	12 mm
Gehäuse-Ø	62 mm
Länge ohne Einspannschaft	100 mm
Tastkugel-Ø	4 mm

Similar designs

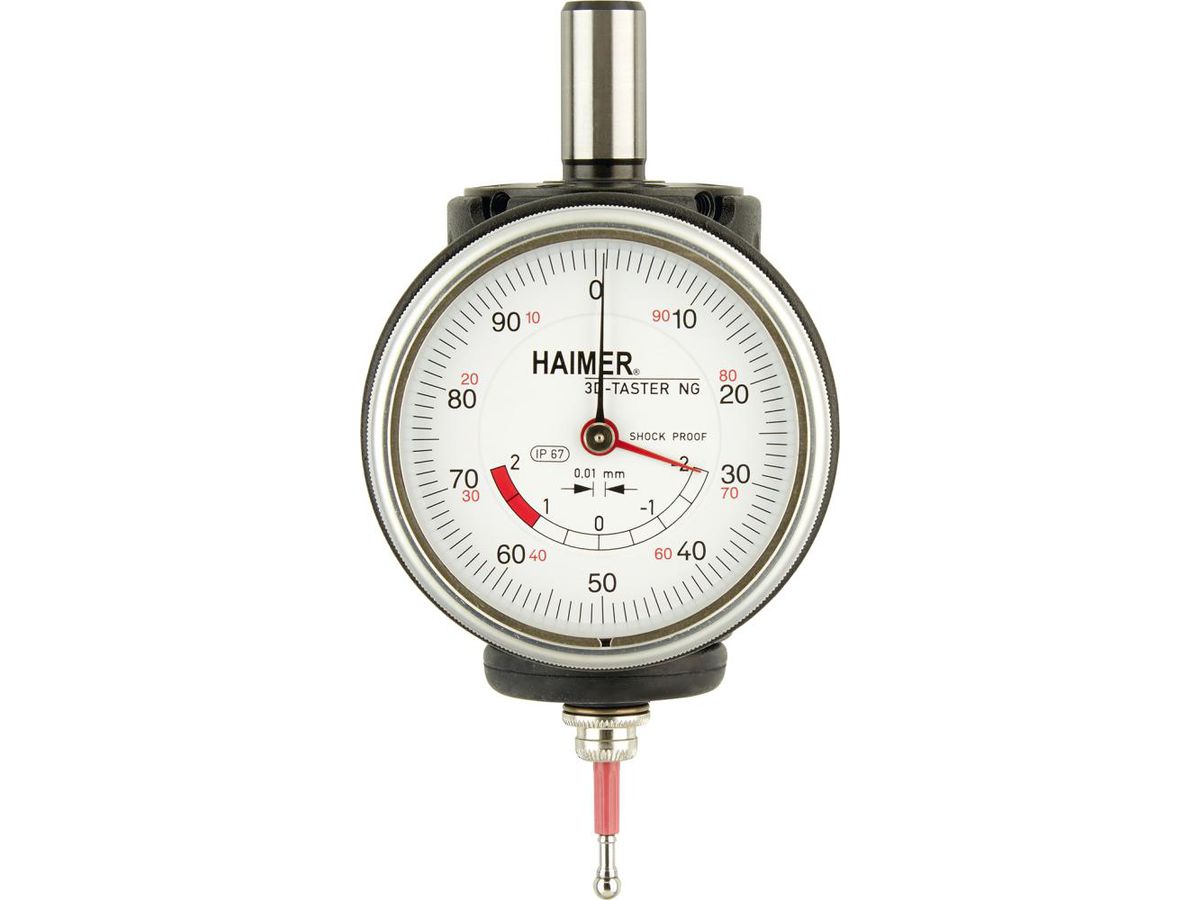

3D probe New Generation
Shaft 12mm Haimer

Item No: 3000454.0012
